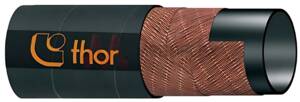

Heavy Duty Shotblast Hose Black Rubber Tube Textile Plie Reinforced with Black Rubber Cover


Product Code: T871


Mandrel Built Shotblast Pressure Hose 12 Bar For Shotcrete

Description


The Mandrel-Manufactured Pressure Hose is engineered for conveying mortar, screed, plaster, concrete, gypsum, and other wet, abrasive media, making it a key asset for shotcrete machines, tunnel construction, and public works projects. It’s designed to handle the tough demands of spraying concrete in tunnels or delivering plaster in urban developments.

Featuring a constant 12 Bar working pressure across sizes from 13mm to 60mm inner diameters, this hose offers a 3:1 safety ratio and a minimum 8mm wall thickness. Its conductive rubber tube, with an abrasion resistance of 70mm³ per DIN ISO 4649, ensures reliable performance when moving gritty, wet materials.

Convey with Strength Using This Hose

  • Abrasion-Resistant Tube: Black smooth conductive rubber.
  • Durable Cover: Black smooth rubber, resists weather and abrasion.
  • Reinforced Core: High tensile textile plies for robust support.
  • Pressure Stability: 12 Bar consistent working pressure across all sizes.
  • Size Range: 13mm to 60mm ID with minimum 8mm wall thickness.

This hose is tailored for abrasive wet media delivery in construction environments. The conductive tube withstands wear from mortar or concrete, ideal for shotcreting tunnel linings or plastering public buildings, while the weather-resistant cover ensures longevity on outdoor sites. Its textile reinforcement provides the strength needed for consistent flow, making it a dependable choice for connecting to sprayers or pumps in infrastructure projects.

Bore Finish: Smooth

Applications


  • Shotcrete spraying
  • Tunnel construction
  • Public works projects
  • Concrete delivery
  • Plaster application
  • Mortar transfer
  • Infrastructure building
  • Urban development plastering
  • Screed conveying
  • Abrasive media handling

Temperature


  • -40°C to 70°C

Construction


  • Inner Layer: Rubber
  • Outer Cover: Rubber
  • Reinforcement: High tensile synthetic textile plies

Suitable Media


  • Mortar
  • Screed
  • Plaster
  • Concrete
  • Gypsum
  • Wet abrasive media

Electrical Resistance


  • Antistatic ✔

Certification


  • DIN ISO 4649

Available Colours


  • Black
PartInner DiameterOuter DiameterWall ThicknessWorking PressureBurst PressureWeightLengthAvailability
T871/1313329.51236100040Good
T871/1616359.51236110040Good
T871/1919389.51236120040Good
T871/252547111236170040Good
T871/282850111236170040Good
T871/323254111236200040Good
T871/383860111236200040Good
T871/45456181236230040Good
T871/515173111236240040Good
T871/575777101236250040Good
T871/606080101236260040Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
