Plutone A Transparent PVC-P S&D Hose for food-liquids, beverages to 20% alcohol
Product Code: PY01


Description
Plutone A is a clear, food grade, versatile hose designed for the food and beverage industry, ensuring visibility, ease of cleaning, and compliance with food safety standards for the transfer of liquids.
Features and Applications
Ideal for the suction and delivery of food liquids, including beverages, milk, dairy products, fruit juices, wines, and liquors with an alcohol content up to 20%. Extensively used in filling machines, dosing machines, dispensers and agriculture, also used on motor pumps for spraying liquids.
Properties

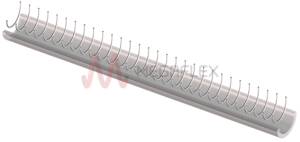

Manufactured from transparent PVC-P, this hose is engineered with a steel spiral reinforcement for added durability while maintaining flexibility. A clear design allows for immediate visual inspection of the media, while the smooth interior optimises flow and simplifies cleaning processes. Withstands a variety of chemicals and weather conditions, making it versatile for both indoor and outdoor applications.
Offers the option of conductivity with a resistance of less than 10^2 Ohm/m when the steel spiral is grounded, enhancing safety by preventing static electricity accumulation according to ISO 8031 - ATEX Directives.
The Plutone A hose stands out for its adaptability in the food, beverage and dairy sectors, offering a reliable solution while adhering to high standards of hygiene and operational efficiency. Bore Finish: Smooth
Temperature
- -10°C to 60°C
Food Quality
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- Suitable for alcohol up to 20%.
Applications
- Filling machines
- Dosing machines
- Dispensers
- Food industry
- Wine industry
- Agriculture
- Irrigation
- Motor pumps
- Dairy farming
Suitable Media
- Food liquids
- Beverages
- Fruit juices
- Wine
- Liquors
- Alcohol up to 20% alcohol content
- Water
- Milk
- Dairy products
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- EU 10/2011
- FDA Reg. 21 CFR 178.3790
- FDA Reg. 21 CFR 176.170
- RoHS
- REACH
Electrical Resistance
- Conductive to 102 Ω/m
Construction
- Wall: PVC-P
- Helix: Steel
Available Colours
- Clear
Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
---|---|---|---|---|---|---|---|---|---|---|---|
PY01006012 | 6 | 12.2 | 3.1 | 5 | 25 | 9.5 | 30 | 130 | 60 | 0.019 | Good |
PY01008014 | 8 | 14.2 | 3.1 | 5 | 25 | 9.5 | 40 | 155 | 60 | 0.024 | Good |
PY01010016 | 10 | 16 | 3 | 5 | 25 | 9.5 | 50 | 170 | 60 | 0.028 | Good |
PY01012018 | 12 | 18 | 3 | 5 | 25 | 9.5 | 50 | 200 | 60 | 0.033 | Good |
PY01013019 | 13 | 19 | 3 | 5 | 25 | 9.5 | 60 | 210 | 60 | 0.038 | Production |
PY01014020 | 14 | 20 | 3 | 5 | 25 | 9.5 | 60 | 225 | 60 | 0.039 | Good |
PY01016022 | 16 | 22.4 | 3.2 | 5 | 25 | 9.5 | 70 | 270 | 60 | 0.048 | Good |
PY01018024 | 18 | 24.4 | 3.2 | 5 | 25 | 9.5 | 80 | 295 | 60 | 0.070 | Good |
PY01019026 | 19 | 26 | 3.5 | 5 | 25 | 9.5 | 90 | 335 | 60 | 0.075 | Production |
PY01020026 | 20 | 26 | 3 | 5 | 25 | 9.5 | 90 | 300 | 60 | 0.083 | Production |
PY01020027 | 20 | 27 | 3.5 | 5 | 25 | 9.5 | 90 | 350 | 60 | 0.086 | Good |
PY01022029 | 22 | 29 | 3.5 | 5 | 25 | 9.5 | 100 | 380 | 60 | 0.093 | Good |
PY01025033 | 25 | 33 | 4 | 4 | 20 | 9.5 | 110 | 505 | 60 | 0.127 | Good |
PY01030038 | 30 | 38 | 4 | 4 | 20 | 8.5 | 140 | 590 | 60 | 0.146 | Good |
PY01032040 | 32 | 40.4 | 4.2 | 4 | 20 | 8.5 | 140 | 650 | 60 | 0.155 | Good |
PY01035043 | 35 | 43.4 | 4.2 | 4 | 20 | 8.5 | 160 | 705 | 60 | 0.167 | Good |
PY01038047 | 38 | 47 | 4.5 | 4 | 20 | 8.5 | 170 | 810 | 30 | 0.120 | Good |
PY01040049 | 40 | 49 | 4.5 | 4 | 20 | 8.5 | 180 | 850 | 30 | 0.125 | Good |
PY01045055 | 45 | 54.8 | 4.9 | 4 | 20 | 8 | 200 | 1105 | 30 | 0.175 | Good |
PY01050060 | 50 | 60 | 5 | 4 | 20 | 8 | 230 | 1240 | 30 | 0.259 | Good |
PY01050061 | 50.8 | 60.8 | 5 | 4 | 20 | 8 | 230 | 1260 | 30 | 0.263 | Production |
PY01060072 | 60 | 71.8 | 5.9 | 3.6 | 18 | 8 | 270 | 1710 | 30 | 0.310 | Good |
PY01063075 | 63 | 74.8 | 5.9 | 3.6 | 18 | 8 | 280 | 1805 | 30 | 0.323 | Good |
PY01065077 | 65 | 76.8 | 5.9 | 3.6 | 18 | 7.5 | 290 | 1860 | 30 | 0.332 | Production |
PY01070082 | 70 | 82 | 6 | 3.6 | 18 | 7 | 320 | 2020 | 30 | 0.354 | Good |
PY01076088 | 76 | 88.2 | 6.1 | 3.6 | 18 | 7 | 340 | 2215 | 30 | 0.508 | Good |
PY01080092 | 80 | 92.2 | 6.1 | 3.6 | 18 | 7 | 360 | 2350 | 20 | 0.398 | Good |
PY01090103 | 90 | 103 | 6.5 | 3 | 15 | 7 | 410 | 3005 | 20 | 0.527 | Good |
PY01102115 | 102 | 115 | 6.5 | 2.4 | 12 | 7 | 460 | 3375 | 20 | 0.589 | Good |
PY01105118 | 105 | 118 | 6.5 | 2.4 | 12 | 7 | 470 | 3470 | 20 | 0.604 | Production |
PY01110127 | 110 | 127 | 8.7 | 1.6 | 8 | 9 | 550 | 4800 | 20 | 0.652 | Good |
PY01120137 | 120 | 137 | 8.7 | 1.2 | 6 | 9 | 600 | 5205 | 20 | 1.06 | Good |
PY01127144 | 127 | 144 | 8.7 | 1.2 | 6 | 9 | 640 | 5540 | 20 | 1.11 | Good |
PY01150170 | 151 | 170 | 9.3 | 1.2 | 6 | 9 | 760 | 6910 | 20 | 1.30 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
