Red Vulcano Fire Deluge Hose
Product Code: VFDH
Description

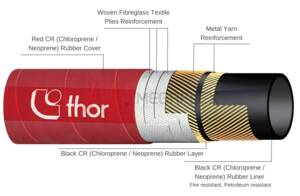

Mandrel built delivery hose for oil rigs. Suitable for: seawater, mud, oil, petroleum products. Resistant to fire for 30 minutes at 800 °C. Complies with ISO 15540:1999. Materials: Tube: Smooth rubber resistant to fire and to petroleum products. Reinforcement: Layers of metal yarns separated by layers of heat resistant rubber. Nr. 3 fiberglass layers. Cover: Red, smooth CR rubber, abrasion, weather, ozone, mineral oils and fire resistant. Fabric impression. Temperature Range: -30°C to +100°C
Temperature
- -30°C to 100°C
Construction
- Wall: CR Rubber
- Reinforcement: Metal, Fabric
- Surface Finish: Smooth
Suitable Media
- Seawater
- Mud
- Oil
- Petroleum products
Certification
- ISO 15540:1999
Applications
- Oil Rigs
Available Colours
- Red
| Part | Inner Diameter | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| ″ | ||||||||||
| VFDH/51 | 2 | 51 | 79 | 14 | 21 | 104 | 400 | 4820 | 40 | Production |
| VFDH/76 | 3 | 76 | 108 | 16 | 21 | 104 | 530 | 7580 | 40 | Production |
| VFDH/102 | 4 | 102 | 134 | 16 | 21 | 104 | 650 | 10150 | 40 | Production |
| VFDH/127 | 5 | 127 | 164 | 18.5 | 21 | 104 | 750 | 14020 | 40 | Production |
| VFDH/152 | 6 | 152 | 188 | 18 | 21 | 104 | 900 | 16320 | 40 | Production |
| VFDH/203 | 8 | 203 | 237 | 17 | 21 | 104 | 1150 | 20520 | 40 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
