Rubber Marine Sanitation Hose Plus - Extra Flexible White Marine Sanitation Hose with Perfectly Smooth Inside
Product Code: SANYBOATPLUS
Description
Description
Extra-flexible Marine Sanitation Hose Plus, whose structure and compounds assure a perfectly smooth tube, antiadherent, odourless, resistant to growth of bacteria and with a low friction factor. Used for all head and holding tank connections and suitable for acids and bases .The tube complies with European food norms and F.D.A. standards; as a result, the hose can be used in all cases where food quality is prerequisite. Complies with ISO 8099:2000 par. 5, 6.1.10 and 6.4. Good resistance to mechanical stresses

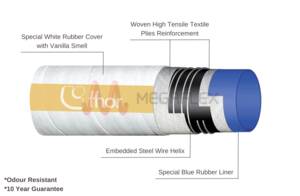

Tube
Blue special rubber resistant to diffusion of bad odours and to growing of bacteria with permeability values of 5,80% in methyl alcohol.
Reinforcement
High tensile textile plies, embedded steel wire helix.
Cover
Special white rubber, with vanilla smell, ageing, weather conditions, sea water and cleansing resistant. Fabric impression.
Marking
Sanyboat - Impermeable AND Odourless Hose W.P. 7 BAR ? 100 PSI - 5 Years Guarantee (in light blue letters)
Comment
THE Hose IS Guaranteed FOR 5 Years.
Food Quality
- Suitable for potable water.
- FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
- Suitable for alcohol up to 80%.
Temperature
- -30°C to 80°C
Construction
- Wall: Rubber
- Reinforcement: Textile
- Helix: Steel
- Surface Finish: Smooth
Applications
- Marine
- All head
- Holding tank connections
Suitable Media
- Acids
- Bases
Certification
- ISO 8099:2000
Available Colours
- White
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|
| SANYBOATPLUS/19 | 19 | 29 | 5 | 7 | 0.9 | 40 | 420 | 20 | Production |
| SANYBOATPLUS/25 | 25 | 35 | 5 | 7 | 0.9 | 50 | 550 | 20 | Production |
| SANYBOATPLUS/32 | 32 | 42 | 5 | 7 | 0.9 | 60 | 740 | 20 | Production |
| SANYBOATPLUS/38 | 38 | 48 | 5 | 7 | 0.9 | 80 | 860 | 20 | Production |
| SANYBOATPLUS/40 | 40 | 50 | 5 | 7 | 0.9 | 80 | 900 | 20 | Production |
| SANYBOATPLUS/45 | 45 | 55 | 5 | 7 | 0.9 | 90 | 1080 | 20 | Production |
| SANYBOATPLUS/50 | 50 | 60 | 5 | 7 | 0.9 | 100 | 1240 | 20 | Production |
| SANYBOATPLUS/60 | 60 | 70 | 5 | 7 | 0.9 | 130 | 1460 | 20 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
