Mandrel Built Tank Reel Hose - Rubber Mandrel Built Tank Reel Hose for Petroleum, Diesel, Minerals
Product Code: T774
Description
Description
Mandrel built tank reel hose suitable for mineral oils, petroleum products, diesel and ecological fuel. Manufactured in accordance with EN 1761-1994 type Ω.

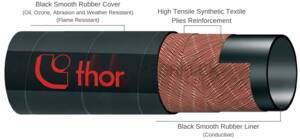

Tube
Black smooth conductive rubber suitable for petroleum products up to 50% aromatic content and for unleaded petrol with max. 5% Mtbe and 15% oxygenated compounds.
Reinforcement
High tensile synthetic textile plies.
Cover
Black, smooth rubber, abrasion, oil, weather and ozone resistant. Fabric impression. Flame resistance according TRbF 131 Teil 2 § 5.5.
Marking
Thor Aspopomp ? WP 20 BAR - Multipurpose OIL Delivery ? EN 1761 Ω TrBF 131/2 § 5.5" (in red letters)
Comment
The particular structure and the rubber used for the fabication allow the hose to have a good resistance to deflection, ovalization and kinking. Available also in lengths up to 60 mt. Also available with RED cover: T775 (Aspopomp/20 80R). Temperature -30°C +70°C (Oil) +100°C (Water)
Temperature
- -30°C to 70°C
Construction
- Wall: Rubber
- Reinforcement: Textile
- Surface Finish: Smooth
Suitable Media
- Mineral oils
- Petroleum
- Diesel
- Ecological fuel
Certification
- TRbF 131 Teil 2 § 5.5
Available Colours
- Black
- Red
Suitable for aromatic hydrocarbons up to 50% aromatic content.
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Weight | Colour | Availability |
|---|---|---|---|---|---|---|---|---|
| T774/25 | 25 | 38 | 6.5 | 20 | 81 | 850 | Black | Production |
| T774/32 | 32 | 46 | 7 | 20 | 70 | 1150 | Black | Production |
| T774/38 | 38 | 52 | 7 | 20 | 74 | 1320 | Black | Production |
| T774/40 | 40 | 54 | 7 | 20 | 71 | 1380 | Black | Production |
| T774/45 | 45 | 59 | 7 | 20 | 77 | 1510 | Black | Production |
| T774/51 | 51 | 65 | 7 | 20 | 71 | 1610 | Black | Production |
| T774/60 | 60 | 74 | 7 | 20 | 60 | 1980 | Black | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
