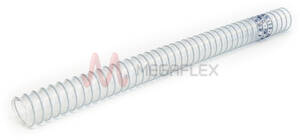

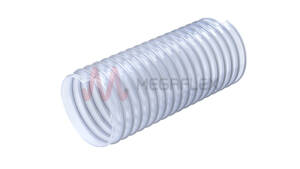

Vulcano PUH 09 ET - Ether Polyurethane Ducting Reinforced with Steel Wire Helix

Product Code: VK01

Description

Applications
Thick wall hose. Ideal for delivery of highly abrasive media like powders, granules, industrial waste, especially if humid. On small and middle-sized plants with high speed pneumatic transport. On small and middle-sized sweeping and grass cutting machines. Ideal for delivery of food grade granules and powders and to transport plastic granules for food grade packaging.

Technical
Ether based polyurethane ducting reinforced with a high adhesion steel spiral. Constant Wall thickness of 0.9mm for the whole diameter range. Smooth inside to ensure optimum flow characteristics.

Properties
Excellent resistance to microbes, hydrolysis, most chemicals, ozone, UV rays, weather conditions. The hose is odourless and doesn't change the organoleptic properties of the transferred materials, very good bending radius even at low temperatures. Halogen free according to RoHS Regulation and free from phthalates. It can be made electrically bonded by earthing the steel spiral in accordance to TRB S 2153. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC).

Standards
Suitable to use for food applications in accordance to the EU Regulation 10/2011 and FDA, title 21 CFR 177.2600. RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Accessories
Single bridge clamps and Double bridge clamps

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Temperature

-40°C to 90°C

Suitable Media

Food granules
Powders
Plastic granules
Industrial waste

Construction

Wall: PU
Helix: Steel
Surface Finish: Corrugated

Applications

Pneumatic transport
Grass cutting machines

Electrical Resistance

Conductive to 10² Ω/m

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Straight Length?	Volume	Availability

VK01020	20	0.9	5	25	155	20	No	0.037	Production
VK01025	25	0.9	5	30	195	20	No	0.045	Production
VK01027	27	0.9	5	30	205	20	No	0.048	Production
VK01030	30	0.9	5	35	235	20	No	0.052	Production
VK01032	32	0.9	5	35	250	20	No	0.055	Production
VK01034	34	0.9	5	40	265	20	No	0.058	Production
VK01035	35	0.9	5	40	270	20	No	0.059	Production
VK01038	38	0.9	5	40	260	20	No	0.063	Good
VK01040	40	0.9	5	50	270	20	No	0.066	Good
VK01045	45	0.9	5	50	355	20	No	0.094	Production
VK01050	50	0.9	4	60	390	20	No	0.103	Good
VK01051	51	0.9	4	60	395	20	No	0.104	Good
VK01055	55	0.9	4	60	425	20	No	0.119	Production
VK01060	60	0.9	3	70	460	20	No	0.129	Good
VK01063	63	0.9	3	70	485	20	No	0.134	Good
VK01065	65	0.9	3	70	500	20	No	0.184	Production
VK01070	70	0.9	3	80	620	20	No	0.202	Good
VK01075	75	0.9	3	90	660	20	No	0.215	Production
VK01076	76	0.9	3	90	670	20	No	0.245	Good
VK01080	80	0.9	3	90	700	20	No	0.256	Good
VK01090	90	0.9	2.5	100	785	20	No	0.285	Good
VK01100	100	0.9	2	120	865	15	No	0.314	Good
VK01102	102	0.9	2	120	885	15	No	0.320	Good
VK01110	110	0.9	2	130	950	15	No	0.343	Good
VK01120	120	0.9	1.5	140	1035	15	No	0.372	Good
VK01127	127	0.9	1.5	150	1275	15	No	0.392	Good
VK01130	130	0.9	1.5	150	1305	15	No	0.400	Production
VK01140	140	0.9	1	160	1400	15	No	0.644	Production
VK01150	150	0.9	1	170	1495	15	No	0.687	Good
VK01152	152	0.9	1	170	1515	15	No	0.696	Good
VK01160	160	0.9	1	180	1590	15	No	0.730	Good
VK01170	170	0.9	0.8	200	1505	15	No	0.778	Good
VK01180	180	0.9	0.8	210	1590	15	No	0.973	Good
VK01200	200	0.9	0.8	230	1765	15	No	1.08	Good
VK01203	203	0.9	0.8	230	1790	15	No	1.09	Good
VK01205	205	0.9	0.8	240	1805	15	No	1.10	Production
VK01210	210	0.9	0.6	240	1850	15	No	1.13	Production
VK01220	220	0.9	0.6	250	1935	10	No	1.18	Production
VK01225	225	0.9	0.6	260	1975	10	No	1.20	Production
VK01228	228	0.9	0.6	260	2005	10	No	1.22	Production
VK01250	250	0.9	0.6	290	2190	10	No	1.33	Production
VK01254	254	0.9	0.6	290	2225	10	No	1.35	Production
VK01265	265	0.9	0.5	300	2545	10	No	1.41	Production
VK01274	274	0.9	0.5	320	2630	10	No	1.45	Production
VK01279	279	0.9	0.5	320	2675	10	No	1.48	Production
VK01300	300	0.9	0.5	350	2870	10	No	1.59	Production
VK01305	305	0.9	0.5	350	2920	10	No	1.61	Production
VK01350	350	0.9	0.4	400	3830	10	Yes	1.30	Production
VK01406	406	0.9	0.3	470	4435	10	Yes	1.73	Production
VK01450	450	0.9	0.3	520	6215	6	Yes	1.28	Production
VK01500	500	0.9	0.3	580	6895	6	Yes	1.57	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
