Eolo PU EST - Clear Ester Polyurethane Ducting Reinforced with Rigid PVC Helix (Light Duty)

Product Code: OU01

Eolo PU EST Clear Ester-PU Ducting with Rigid PVC Helix (Light Duty)

Description

Applications
Suction of abrasive media such as powders, pellets, plastic granules, fibres, dust.

Technical

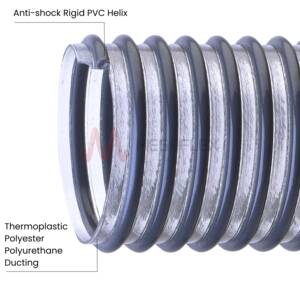

Ester based Polyurethane duct, reinforced with an anti-shock PVC helix. Completely smooth bore to ensure optimization of flow properties, corrugated outside. Wall thickness from 0.4 to 0.8 mm.

Properties
High mechanical properties: light, really flexible, easy to bend. Really good resistance to abrasion and most chemicals. Halogen free and conforms to RoHS as well as free from phthalates. It can be manufactured in antistatic version adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). TRB S 2153.

Accessories

Temperature

-40°C to 80°C

Construction

Wall: Ester based TPU
Helix: PVC
Surface Finish: Smooth

Suitable Media

Abrasive dust
Fibres
Chips
Granules

Applications

Dedusting
Industrial suction

Available Colours

Clear
Grey

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

OU01013	13	18.6	0.4	2.5	20	80	20	0.013	Production
OU01016	16	21.6	0.4	2.5	25	100	20	0.018	Production
OU01019	19.1	24.7	0.4	2.5	25	120	20	0.022	Production
OU01020	20	25.6	0.4	2.5	25	120	20	0.025	Good
OU01022	22	27.6	0.4	2.5	28	130	20	0.028	Production
OU01025	25	30.6	0.4	2.5	30	150	20	0.034	Good
OU01030	30	35.6	0.4	2.5	35	180	20	0.051	Good
OU01032	31.8	37.6	0.4	2	35	200	20	0.054	Good
OU01035	35	41	0.5	2	45	220	20	0.059	Good
OU01038	38.1	44.3	0.5	2	50	250	20	0.064	Good
OU01040	40	46.2	0.5	2	60	260	20	0.067	Good
OU01045	45	51.4	0.5	2	65	310	20	0.099	Good
OU01050	50	56.8	0.5	2	70	350	20	0.109	Production
OU01052	50.8	57.6	0.5	2	70	360	20	0.111	Good
OU01055	55	62.2	0.5	2	75	420	20	0.119	Production
OU01060	60	67.6	0.5	1.6	80	500	20	0.173	Good
OU01063	63.5	71.3	0.5	1.6	80	550	20	0.183	Good
OU01065	65	72.8	0.5	1.6	90	560	20	0.186	Production
OU01070	70	78.4	0.6	1.6	95	600	30	0.339	Good
OU01076	76.2	84.6	0.6	1.6	100	650	30	0.365	Good
OU01080	80	89	0.6	1.6	110	700	30	0.384	Good
OU01090	90	99.2	0.6	1.4	125	810	30	0.429	Good
OU01100	100	110	0.6	1.3	140	870	30	0.631	Good
OU01102	102	112	0.6	1.3	140	890	30	0.643	Good
OU01110	110	120	0.6	1.2	150	1020	30	0.692	Good
OU01120	120	131	0.6	1	160	1220	30	0.753	Good
OU01127	127	138	0.6	1	170	1290	30	0.794	Good
OU01130	130	141	0.7	0.9	170	1470	20	0.611	Good
OU01140	140	151	0.7	0.9	180	1580	20	0.654	Good
OU01150	152	163	0.7	0.8	200	1630	20	0.939	Good
OU01152	152	164	0.7	0.8	200	1640	20	0.945	Good
OU01160	160	174	0.7	0.7	220	2100	20	0.893	Good
OU01180	180	194	0.7	0.4	250	2350	20	0.995	Good
OU01200	200	214	0.7	0.4	260	2420	20	1.65	Good
OU01203	203	218	0.7	0.4	260	2460	20	1.67	Good
OU01250	250	266	0.8	0.4	300	3640	10	1.36	Good
OU01300	300	316	0.8	0.3	350	4540	10	1.62	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
