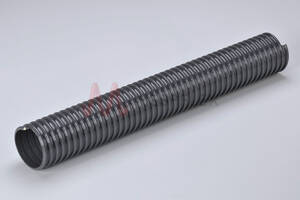

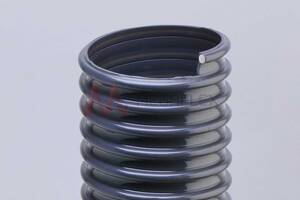

Eolo L PVC - Dark Grey PVC Ducting with Rigid PVC Helix (Light Duty) for Suction of Air, Fumes, Gas, Dust

Product Code: EL01

Description

Applications
Suction of air, fumes, gasses, sawing, dust, aerating and conditioning plants, woodworking plants etc. Resistant to low temperature.

Technical

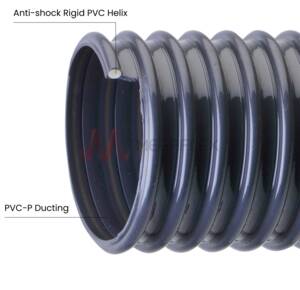

Plasticized PVC ducting reinforced with anti-shock rigid PVC spiral. Perfectly smooth inside, outside corrugated. Wall thickness from 0.8mm to 1.2mm.

Properties
More flexible and lighter than any Eolo in the range for ventilation. High mechanical characteristics, very light and flexible, good bending radius, resistant to ozone and atmospherical agents, ageing, hydrolysis, UV Rays, and most chemicals. It can be manufactured in antistatic version adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006), TRB S 2153.

Accessories
Manicotto EL Plus

Temperature

-10°C to 50°C

Suitable Media

Air
Fumes
Gas
Dust
Sawdust
Shavings

Construction

Wall: PVC-P
Helix: PVC
Surface Finish: Smooth

Applications

Industrial ventilation
Air conditioning

Available Colours

Black

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Colour	Availability

EL01025	25	30.4	0.8	2.5	30	160	50	0.073	Dark Grey	Good
EL01027	27	32.4	0.8	2.5	30	170	50	0.082	Dark Grey	Production
EL01030	30	35.6	0.8	2.5	40	200	50	0.115	Dark Grey	Good
EL01032	31.8	37.4	0.8	2	40	210	50	0.121	Dark Grey	Good
EL01035	35	40.8	0.8	2	40	220	50	0.131	Dark Grey	Good
EL01038	38.1	44.3	0.8	2	50	270	50	0.142	Dark Grey	Good
EL01039	39	45.2	0.8	2	50	270	50	0.145	Dark Grey	Production
EL01040	40	46.2	0.8	2	50	280	50	0.177	Dark Grey	Good
EL01045	45	51.8	0.8	2	60	350	50	0.199	Dark Grey	Good
EL01050	50	57.4	0.9	2	60	430	50	0.248	Dark Grey	Good
EL01051	51.5	58.9	0.9	2	60	440	50	0.254	Dark Grey	Production
EL01052	50.8	58.2	0.9	2	60	440	50	0.251	Dark Grey	Good
EL01055	55	62.4	0.9	2	70	470	50	0.270	Dark Grey	Production
EL01060	60	67.4	0.9	1.6	80	510	50	0.388	Dark Grey	Good
EL01063	63.5	70.9	0.9	1.6	80	540	50	0.408	Dark Grey	Good
EL01065	65	72.4	0.9	1.6	80	550	50	0.417	Dark Grey	Production
EL01070	70	77.8	1	1.5	90	590	50	0.448	Dark Grey	Good
EL01075	75	83	1	1.5	90	650	50	0.598	Dark Grey	Good
EL01076	76.2	84.2	1	1.5	100	660	50	0.606	Dark Grey	Good
EL01077	77.7	85.7	1	1.5	100	670	50	0.617	Dark Grey	Production
EL01080	80	89.2	1	1.5	100	790	50	0.642	Dark Grey	Good
EL01090	90	99.2	1	1.4	110	890	30	0.429	Dark Grey	Good
EL01100	100	110	1	1.3	130	1000	30	0.632	Dark Grey	Good
EL01102	102	112	1	1.3	130	1020	30	0.644	Dark Grey	Good
EL01103	104	113	1	1.3	130	1030	30	0.653	Dark Grey	Production
EL01105	105	115	1	1.2	130	1070	30	0.662	Dark Grey	Production
EL01110	110	120	1	1.2	140	1160	30	0.694	Dark Grey	Good
EL01120	120	130	1	1	150	1260	30	0.751	Dark Grey	Good
EL01125	125	135	1	1	150	1310	30	0.780	Dark Grey	Production
EL01127	127	137	1	1	150	1330	30	0.791	Dark Grey	Good
EL01130	130	140	1	0.9	160	1360	30	0.809	Dark Grey	Production
EL01140	140	150	1	0.9	170	1460	30	1.16	Dark Grey	Production
EL01150	152	163	1.1	0.8	180	1690	20	0.937	Dark Grey	Good
EL01152	152	164	1.1	0.8	180	1700	20	0.942	Dark Grey	Production
EL01160	160	173	1.1	0.7	190	1860	20	0.884	Dark Grey	Good
EL01180	180	193	1.1	0.4	210	2090	20	0.986	Dark Grey	Good
EL01200	200	213	1.1	0.4	230	2280	20	1.64	Dark Grey	Good
EL01203	203	216	1.1	0.4	230	2310	20	1.66	Dark Grey	Production
EL01250	250	265	1.2	0.4	270	3390	10	1.35	Dark Grey	Good
EL01300	300	315	1.2	0.3	300	4140	10	1.61	Dark Grey	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
