Eolo PVC - Grey Plasticised PVC Air Ducting Reinforced with Rigid PVC Helix (Medium Duty) for Suction of Air, Fumes, Gas, Sawdust

Product Code: EO01

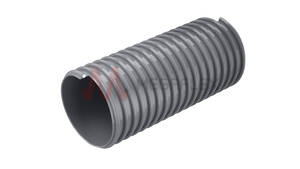

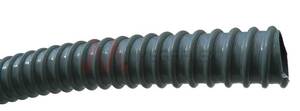

Eolo PVC Grey Plasticised PVC Air Ducting with Rigid PVC Helix (Medium Duty)

Description

Applications
Suction of air, fumes, gas, powders, sawing, dust. Aerating and conditioning plants, wood working plants.

Technical
PVC ducting reinforced with an anti-shock rigid PVC spiral. Perfectly smooth inside, outside slightly corrugated to ensure optimization of flow properties. Wall thickness from 0.8mm to 1.5mm.

Properties
High mechanical characteristics, very light and flexible, resistant to ozone and atmospherical agents, ageing, hydrolysis, UV Rays, and most chemicals. It can be manufactured in antistatic version adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Accessories

Temperature

-10°C to 50°C

Suitable Media

Air
Fumes
Gas
Dust
Sawdust
Shavings

Construction

Wall: PVC-P
Helix: PVC
Surface Finish: Smooth

Applications

Industrial ventilation
Air conditioning

Available Colours

Grey

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EO01013	13	18.6	0.8	4.5	20	90	30	0.019	Production
EO01016	16	21.6	0.8	4.5	20	110	30	0.025	Good
EO01019	19.1	24.7	0.8	4	30	130	30	0.032	Good
EO01020	20	25.6	0.8	4	30	140	30	0.036	Good
EO01022	22	27.6	0.8	4	30	150	30	0.036	Production
EO01025	25	30.8	1	4	40	190	50	0.073	Good
EO01030	30	36	1	3.5	50	230	50	0.115	Good
EO01032	31.8	38	1	3.5	50	260	50	0.122	Good
EO01035	35	41.6	1	3.5	50	290	50	0.133	Good
EO01038	38.1	45.1	1	3	60	340	50	0.144	Good
EO01039	39	46	1	3	60	340	50	0.177	Production
EO01040	40	47	1	3	60	350	50	0.180	Good
EO01045	45	52.6	1	3	70	440	50	0.202	Good
EO01050	50	58.2	1	3	80	520	50	0.251	Good
EO01051	51.5	59.7	1	3	80	540	50	0.258	Production
EO01052	50.8	59	1	3	80	530	50	0.255	Good
EO01055	55	63.4	1	3	80	590	50	0.274	Production
EO01060	60	68.4	1	3	90	640	50	0.394	Good
EO01063	63.5	71.9	1	3	100	680	50	0.414	Good
EO01065	65	73.4	1	3	100	690	50	0.423	Good
EO01070	70	79	1.2	3	110	750	50	0.455	Good
EO01076	76.2	85.4	1.2	2.5	110	840	50	0.615	Good
EO01077	77.7	86.9	1.2	2.5	120	860	50	0.626	Production
EO01080	80	90.2	1.2	2.5	120	960	50	0.649	Good
EO01090	90	101	1.2	2.5	140	1140	30	0.435	Production
EO01100	100	112	1.2	2.5	150	1330	30	0.643	Good
EO01102	102	114	1.2	2.5	150	1350	30	0.654	Good
EO01103	104	115	1.2	2.5	150	1370	30	0.663	Production
EO01105	105	117	1.2	2.5	160	1390	30	0.672	Production
EO01110	110	122	1.3	2.5	160	1470	30	0.702	Good
EO01120	120	132	1.3	2.5	180	1600	30	0.759	Good
EO01127	127	139	1.3	2.5	190	1720	30	0.801	Good
EO01130	130	142	1.3	2.5	190	1760	30	0.818	Production
EO01140	140	152	1.3	2	200	1940	30	1.17	Good
EO01150	152	164	1.3	2	220	2110	20	1.26	Good
EO01152	152	165	1.3	2	220	2130	20	1.27	Production
EO01160	160	174	1.5	1.5	230	2330	20	1.34	Production
EO01180	180	194	1.5	1.5	250	2620	20	1.49	Production
EO01200	200	215	1.5	1.5	280	2900	20	1.65	Good
EO01203	203	218	1.5	1.5	280	2940	20	1.67	Production
EO01250	250	265	1.5	1	330	3800	10	1.36	Production
EO01300	300	316	1.5	1	380	4700	10	1.62	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
