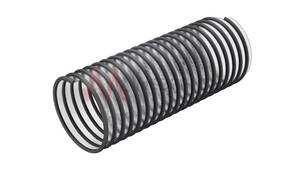

Eolo PU EST ASW Permanently Antistatic Ester-TPU Ducting with Rigid PVC Helix
Product Code: OU86

Description

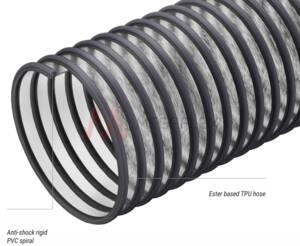

Introducing Eolo PU EST ASW — a specialised hose with a wall made of special TPU (Thermoplastic Polyurethane) based on ester with permanent antistatic properties (R<109 Ohm/m). This feature facilitates the continuous dissipation of electrostatic charges, enhancing the flow performance as the media transported easily detaches from the hose wall. Reinforced with a shock-resistant rigid PVC helix, featuring a completely smooth internal surface and a corrugated exterior. It offers good resistance to abrasion and bending with a wall thickness ranging from 0.4 to 0.8 mm.
Key Features:
- Applications: Suitable for the suction of dust, chips, granules, and abrasive substances in various industries.
- Properties: Antistatic, good abrasion and bending resistance, smooth internal surface for improved flow, corrugated exterior.
- Material: Wall made of special TPU based on ester, reinforced with rigid PVC spiral.
- Size Range: Diameters from 13 to 300 mm.
Temperature
- -40°C to 80°C
Suitable Media
- Dust
- Chips
- Abrasive material
- Granules
- Air
- Fumes
Applications
- Woodworking
- Carpentry
- Dedusting
- Small industrial vacuum cleaners
Electrical Resistance
- Antistatic to 109 Ω/m
Construction
- Wall: Ester-TPU
- Helix: PVC
Available Colours
- Clear
- Dark Grey
Certification
- RoHS
- REACH
Part | Inner Diameter | Outer Diameter | Wall Thickness | Vacuum Rating | Bend Radius | Weight | Length | Volume | Colour | Availability |
---|---|---|---|---|---|---|---|---|---|---|
OU86013 | 13 | 18.6 | 0.4 | 2.5 | 20 | 80 | 20 | 0.013 | Clear, Grey | Production |
OU86016 | 16 | 21.6 | 0.4 | 2.5 | 25 | 100 | 20 | 0.018 | Clear, Grey | Production |
OU86019 | 19.1 | 24.7 | 0.4 | 2.5 | 25 | 120 | 20 | 0.022 | Clear, Grey | Production |
OU86020 | 20 | 25.6 | 0.4 | 2.5 | 25 | 120 | 20 | 0.025 | Clear, Grey | Good |
OU86022 | 22 | 27.6 | 0.4 | 2.5 | 28 | 130 | 20 | 0.028 | Clear, Grey | Production |
OU86025 | 25 | 30.6 | 0.4 | 2.5 | 30 | 150 | 20 | 0.034 | Clear, Grey | Good |
OU86030 | 30 | 35.6 | 0.4 | 2.5 | 35 | 170 | 20 | 0.051 | Clear, Grey | Good |
OU86032 | 31.8 | 37.6 | 0.4 | 2 | 35 | 190 | 20 | 0.054 | Clear, Grey | Good |
OU86035 | 35 | 41 | 0.5 | 2 | 45 | 220 | 20 | 0.059 | Clear, Grey | Good |
OU86038 | 38.1 | 44.3 | 0.5 | 2 | 50 | 250 | 20 | 0.064 | Clear, Grey | Good |
OU86040 | 40 | 46.2 | 0.5 | 2 | 60 | 260 | 20 | 0.067 | Clear, Grey | Good |
OU86045 | 45 | 51.4 | 0.5 | 2 | 65 | 300 | 20 | 0.099 | Clear, Grey | Good |
OU86050 | 50 | 56.8 | 0.5 | 2 | 70 | 350 | 20 | 0.109 | Clear, Grey | Production |
OU86052 | 50.8 | 57.6 | 0.5 | 2 | 70 | 360 | 20 | 0.111 | Clear, Grey | Good |
OU86055 | 55 | 62.2 | 0.5 | 2 | 75 | 420 | 20 | 0.119 | Clear, Grey | Production |
OU86060 | 60 | 67.6 | 0.5 | 1.6 | 80 | 500 | 20 | 0.173 | Clear, Grey | Good |
OU86063 | 63.5 | 71.3 | 0.5 | 1.6 | 80 | 550 | 20 | 0.183 | Clear, Grey | Good |
OU86065 | 65 | 72.8 | 0.5 | 1.6 | 90 | 560 | 20 | 0.186 | Clear, Grey | Production |
OU86070 | 70 | 78.4 | 0.6 | 1.6 | 95 | 600 | 30 | 0.339 | Clear, Grey | Good |
OU86076 | 76.2 | 84.6 | 0.6 | 1.6 | 100 | 650 | 30 | 0.365 | Clear, Grey | Good |
OU86080 | 80 | 89 | 0.6 | 1.6 | 110 | 690 | 30 | 0.384 | Clear, Grey | Good |
OU86090 | 90 | 99.2 | 0.6 | 1.4 | 125 | 800 | 30 | 0.429 | Clear, Grey | Good |
OU86100 | 100 | 110 | 0.6 | 1.3 | 140 | 870 | 30 | 0.631 | Clear, Grey | Good |
OU86102 | 102 | 112 | 0.6 | 1.3 | 140 | 880 | 30 | 0.643 | Clear, Grey | Good |
OU86110 | 110 | 120 | 0.6 | 1.2 | 150 | 1010 | 30 | 0.692 | Clear, Grey | Good |
OU86120 | 120 | 131 | 0.6 | 1 | 160 | 1210 | 30 | 0.753 | Clear, Grey | Good |
OU86127 | 127 | 138 | 0.6 | 1 | 170 | 1270 | 30 | 0.794 | Clear, Grey | Good |
OU86130 | 130 | 141 | 0.7 | 0.9 | 170 | 1460 | 20 | 0.611 | Clear, Grey | Good |
OU86140 | 140 | 151 | 0.7 | 0.9 | 180 | 1560 | 20 | 0.654 | Clear, Grey | Good |
OU86150 | 152 | 163 | 0.7 | 0.8 | 200 | 1620 | 20 | 0.939 | Clear, Grey | Good |
OU86152 | 152 | 164 | 0.7 | 0.8 | 200 | 1630 | 20 | 0.840 | Clear, Grey | Good |
OU86160 | 160 | 174 | 0.7 | 0.7 | 220 | 2080 | 20 | 0.893 | Clear, Grey | Good |
OU86180 | 180 | 194 | 0.7 | 0.4 | 250 | 2330 | 20 | 1.49 | Clear, Grey | Good |
OU86200 | 200 | 214 | 0.7 | 0.4 | 260 | 2400 | 20 | 1.65 | Clear, Grey | Good |
OU86203 | 203 | 218 | 0.7 | 0.4 | 260 | 2440 | 20 | 1.67 | Clear, Grey | Good |
OU86250 | 250 | 266 | 0.8 | 0.4 | 300 | 3620 | 10 | 1.36 | Clear, Grey | Good |
OU86300 | 300 | 316 | 0.8 | 0.3 | 350 | 4500 | 10 | 1.62 | Clear, Grey | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
