Eolo SE - Blue Plasticised PVC Ducting Reinforced with Rigid PVC Helix (Medium Duty) for Low Temperature Air, Fumes, Gas

Product Code: EE01

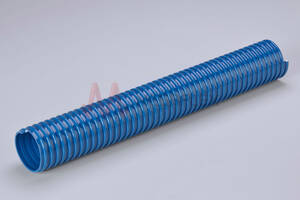

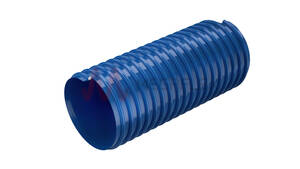

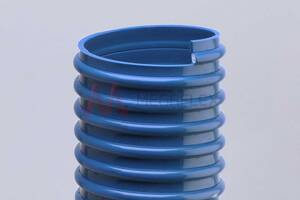

Eolo SE Blue Plasticised PVC Ducting with Rigid PVC Helix (Medium Duty)

Description

Applications
When a vacuum resistant flexible hose is needed, for industry, domestic vacuum cleaners, aerating and conditioning plants and suction of fumes, gasses, etc.

Technical
Super-elastic PVC ducting reinforced with an anti-shock PVC helix. Completely smooth inside, corrugated outside. Wall thickness from 1.2mm to 2.7mm.

Properties
Eolo SE has high mechanical characteristics, light, flexible, really good bending. Very good resistance to ozone, atmospherical agents, hydrolysis, ageing, UV Rays, and most chemicals. It can be manufactured in antistatic version adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006), TRB S 2153.

Accessories

Temperature

-25°C to 50°C

Applications

Vacuum cleaners
Ventilation systems
Air conditioning

Construction

Wall: PVC-P
Helix: PVC
Surface Finish: Smooth

Suitable Media

Smoke
Gas
Air

Available Colours

Blue

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EE01016	16	21.2	1.2	6	65	130	50	0.037	Production
EE01019	19.1	24.3	1.2	6	65	150	50	0.049	Production
EE01020	20	25.2	1.2	6	80	150	50	0.051	Production
EE01025	25	30.2	1.2	6	100	190	50	0.072	Production
EE01030	30	36	1.4	6	110	270	50	0.115	Production
EE01032	31.8	38	1.4	6	120	300	50	0.122	Production
EE01035	35	41.4	1.5	5	130	330	50	0.132	Production
EE01038	38.1	44.5	1.5	5	135	360	50	0.142	Production
EE01039	39	45.4	1.5	5	140	370	50	0.145	Production
EE01040	40	46.4	1.5	5	160	380	50	0.178	Production
EE01045	45	51.8	1.6	5	175	460	50	0.199	Production
EE01050	50	57.8	1.6	5	175	570	50	0.250	Production
EE01051	51.5	59.3	1.6	5	180	580	50	0.256	Production
EE01052	50.8	58.6	1.6	5	175	580	50	0.253	Production
EE01055	55	63	1.7	5	190	650	50	0.272	Production
EE01057	57	65	1.7	5	200	680	50	0.374	Production
EE01060	60	69.2	2	5	220	880	50	0.399	Production
EE01063	63.5	72.7	2	5	230	930	50	0.419	Production
EE01065	65	74.2	2	5	250	950	50	0.427	Production
EE01070	70	80.4	2	5	270	1070	50	0.463	Production
EE01076	76.2	86.6	2	5	290	1160	50	0.624	Production
EE01080	80	90.8	2	5	350	1220	30	0.523	Production
EE01090	90	101	2	4.5	400	1360	30	0.581	Production
EE01100	100	111	2.1	4.5	400	1520	30	0.641	Production
EE01102	102	113	2.1	4.5	430	1550	30	0.652	Production
EE01110	110	122	2.1	4.5	470	1810	30	0.705	Production
EE01120	120	133	2.1	4.5	500	2000	30	1.02	Production
EE01127	127	140	2.2	4.5	510	2220	30	1.08	Production
EE01130	130	144	2.3	4	560	2430	30	1.10	Production
EE01140	140	154	2.3	4	600	2700	20	1.18	Production
EE01150	152	166	2.5	4	600	3010	20	1.28	Production
EE01152	152	167	2.5	4	650	3080	20	1.28	Production
EE01160	160	176	2.7	3.5	730	3320	20	1.41	Production
EE01180	180	196	2.7	3.5	800	3720	20	1.57	Production
EE01200	200	216	2.7	3.5	800	3960	20	1.73	Production
EE01203	203	219	2.7	3	1250	4020	10	1.75	Production
EE01250	250	267	2.8	7	1500	5260	10	2.13	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
