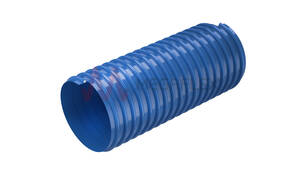

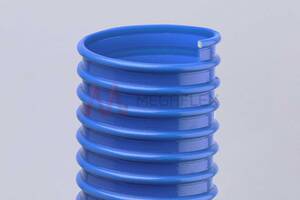

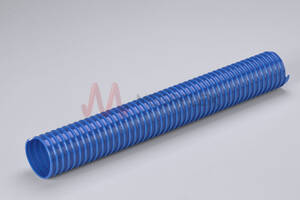

Eolo SL - Blue PVC Ducting with Rigid PVC Helix (Light Duty) for Air Conditioning, Fumes, Gas, Aeration

Product Code: ES01

Description

Applications
Suction of air, fumes, gas, conditioning, aeration. Resistant to low temperatures.

Technical
PVC ducting reinforced with an anti-shock rigid PVC spiral. Perfectly smooth inside to ensure optimization of flow properties, outside slightly corrugated. Wall thickness from 0.6mm to 1.00mm. The lightest and the most flexible in the range.

Properties
High mechanical characteristics, very light and flexible, resistant to ozone and atmospherical agents, ageing, hydrolysis, UV Rays, and most chemicals.

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Accessories

Temperature

-10°C to 50°C

Suitable Media

Air
Fumes
Gas
Dust
Sawdust
Shavings

Construction

Wall: PVC-P
Helix: PVC
Surface Finish: Smooth

Applications

Industrial ventilation
Air conditioning

Available Colours

Blue

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

ES01025	25	30	0.6	0.8	30	140	30	0.039	Good
ES01027	27	32	0.6	0.8	40	150	30	0.052	Good
ES01030	30	35	0.6	0.8	40	160	30	0.061	Good
ES01032	31.8	36.8	0.7	0.7	40	180	30	0.061	Good
ES01035	35	40.2	0.7	0.7	40	200	30	0.087	Good
ES01038	38.1	43.3	0.7	0.7	50	210	30	0.094	Good
ES01039	39	44.4	0.7	0.7	55	230	30	0.112	Production
ES01040	40	45.4	0.7	0.7	50	230	30	0.114	Good
ES01045	45	50.4	0.7	0.7	80	260	30	0.145	Good
ES01050	50	55.8	0.7	0.7	90	300	30	0.161	Good
ES01051	51.5	57.3	0.7	0.7	90	310	30	0.165	Production
ES01052	50.8	56.6	0.7	0.7	90	310	30	0.163	Good
ES01055	55	61.2	0.7	0.7	95	360	30	0.176	Production
ES01060	60	66.8	0.7	0.6	100	440	30	0.192	Good
ES01063	63.5	70.5	0.7	0.6	100	490	30	0.203	Good
ES01065	65	72	0.7	0.6	100	500	30	0.311	Production
ES01070	70	77.6	0.7	0.5	110	520	30	0.335	Good
ES01076	76.2	83.8	0.7	0.5	120	560	30	0.362	Good
ES01077	77.7	85.3	0.7	0.5	120	570	30	0.369	Production
ES01080	80	88	0.8	0.5	130	620	30	0.380	Good
ES01090	90	98.2	0.8	0.4	150	720	30	0.424	Production
ES01100	100	109	0.8	0.4	160	800	30	0.626	Good
ES01102	102	111	0.8	0.4	160	810	30	0.637	Good
ES01103	104	112	0.8	0.4	170	820	30	0.646	Production
ES01110	110	119	0.8	0.4	190	950	30	0.688	Good
ES01120	120	130	0.8	0.4	200	1060	30	0.747	Good
ES01127	127	137	0.8	0.3	230	1160	30	0.985	Good
ES01130	130	140	0.8	0.3	250	1260	30	1.01	Production
ES01140	140	150	0.8	0.3	260	1360	30	1.08	Production
ES01150	152	163	0.9	0.3	280	1580	20	0.936	Good
ES01152	152	164	0.9	0.3	280	1630	20	0.942	Good
ES01160	160	172	1	0.2	280	1770	20	0.992	Production
ES01180	180	192	1	0.2	450	1980	20	1.48	Production
ES01200	200	213	1	0.2	600	2310	20	1.64	Production
ES01203	203	216	1	0.2	600	2350	20	1.66	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
