Eolo AF - Flame Retardant Green PVC Air Ducting Reinforced with Rigid PVC Helix for Suction of Air, Fumes, Gas

Product Code: EF75

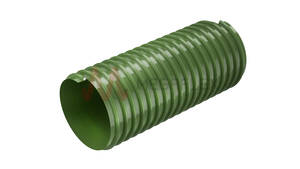

Eolo AF Flame Retardant Green PVC Air Ducting with Rigid PVC Helix

Description

Applications
Suction of air, fumes, gas and powders. Air conditioning, ventilation. Eolo AF finds a perfect application in shipbuilding yards and welding fumes suction.

Technical
Flame resistant PVC ducting reinforced by an anti-shock rigid PVC spiral. Inside perfectly smooth, outside corrugated.

Properties
High mechanical characteristics, very light and flexible, resistant to weather conditions, ageing, hydrolysis, UV rays and most chemicals.

Standards
Flame retardant according to UL 94 V0, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006). It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Accessories

Temperature

-10°C to 50°C

Applications

Industrial ventilation
Air conditioning
Ship building

Construction

Wall: PVC-P
Helix: PVC
Surface Finish: Smooth

Suitable Media

Gas
Air
Fumes

Available Colours

Green

Certification

UL 94 V0

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EF75020	20	25.4	0.8	2	32	140	50	0.054	Production
EF75025	25	30.4	0.8	2	32	170	50	0.073	Production
EF75027	27	32.4	0.8	2	33	180	50	0.077	Production
EF75032	31.8	37.2	0.8	2	35	220	50	0.121	Production
EF75038	38.1	44.1	0.8	2	45	270	50	0.141	Production
EF75040	40	46.2	0.8	2	50	300	50	0.177	Production
EF75045	45	51.8	0.8	2	55	380	50	0.199	Production
EF75050	50	57.4	0.9	2	60	460	50	0.248	Production
EF75052	50.8	58.2	0.9	2	60	470	50	0.251	Good
EF75055	55	62.4	0.9	2	65	500	50	0.270	Production
EF75060	60	67.4	0.9	1.6	70	550	50	0.388	Production
EF75063	63.5	70.9	0.9	1.6	70	580	50	0.408	Production
EF75070	70	77.8	1	1.5	90	630	50	0.448	Production
EF75076	76.2	84	1	1.5	100	690	50	0.605	Production
EF75080	80	89	1	1.5	110	820	50	0.641	Good
EF75090	90	99	1	1.5	130	920	30	0.428	Production
EF75100	100	110	1	1.3	140	1060	30	0.632	Good
EF75102	102	112	1	1.3	145	1080	30	0.644	Production
EF75110	110	120	1	1.2	150	1200	30	0.692	Production
EF75120	120	130	1	1	160	1300	30	0.750	Production
EF75127	127	137	1	0.9	170	1380	30	0.790	Production
EF75130	130	140	1	0.9	170	1410	30	1.08	Production
EF75140	140	151	1	0.9	175	1590	30	1.16	Production
EF75150	152	163	1.1	0.9	180	1760	20	0.832	Good
EF75152	152	163	1.1	0.9	180	1770	20	0.837	Production
EF75160	160	174	1.5	0.9	200	2380	20	0.889	Production
EF75180	180	194	1.5	0.9	220	2720	20	1.55	Production
EF75200	200	215	1.5	0.9	240	3120	20	1.72	Good
EF75203	203	218	1.5	0.9	250	3170	20	1.74	Production
EF75250	250	265	1.5	0.9	280	3880	10	1.36	Production
EF75254	254	269	1.5	0.9	290	3950	10	1.38	Production
EF75300	300	315	1.5	0.9	330	4800	10	1.61	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
