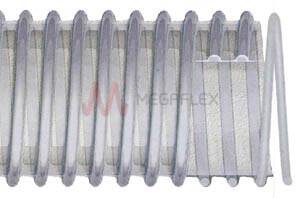

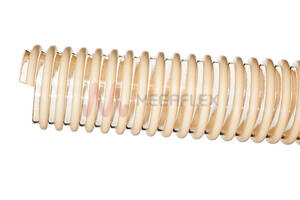

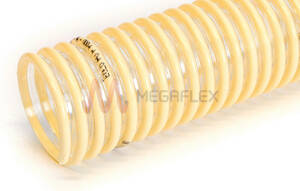

Eolo PUP Food - Ether Polyurethane Ducting Reinforced with Rigid PVC Helix (Medium Duty)

Product Code: EP01

Eolo PUP Food Ether Polyurethane Ducting with Rigid PVC Helix (Medium Duty)

Description

Applications
Suitable for suction of liquids and dry food such as grains, animal feed, sugar, flour, fatty food, but not for milk or dairy products. Eolo PUP Food finds a perfect application also in fish farm.

Technical
Ether based PU wall, food grade, with an anti-shock rigid PVC spiral. Completely smooth inside, corrugated outside.

Properties
Medium duty product with a wall thickness from 0.8 to 1.2 mm, light, flexible and easy to bend extremely resistant to abrasion and flexing, this hose features high mechanical properties. Excellent resistance to microbes, hydrolysis, ozone, weather conditions, most chemicals. Halogen free and conforms to RoHS as well as free from phthalates.

Standards
Food grade according to FDA REg. Cfr 21-Item 17.2600 (aqueous and fatty food) and to EU Reg. 10/2011, classes A, B, C, D2,RoHS 2011/65/ EU Directive, REACH Regulation (1907/2006), TRB S 2153. It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire in accordance to TRB S 2153 the hose is electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC)

Accessories

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
Suitable for alcohol up to 20%.

Temperature

-40°C to 80°C

Suitable Media

Grains
Animal feed
Sugar
Flour
Abrasive foodstuff
Live fish

Applications

Combined machines
Agricultural vehicles
Seed drills
Aquaculture

Construction

Wall: TPU
Helix: PVC
Surface Finish: Smooth

Available Colours

Clear
Grey

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EP01022	22	28.6	0.8	3.5	80	190	30	0.041	Production
EP01025	25	31.6	0.8	3.5	80	220	30	0.057	Production
EP01030	30	36.6	0.8	3.5	100	260	30	0.070	Production
EP01032	31.8	38.4	0.8	3	110	270	30	0.074	Production
EP01035	35	42	0.8	3	120	300	30	0.081	Production
EP01038	38.1	45.1	0.8	3	130	320	30	0.087	Good
EP01039	39	46	0.8	3	135	330	30	0.118	Production
EP01040	40	47.2	1	3	140	370	30	0.121	Good
EP01045	45	52.8	1	3	160	470	30	0.152	Production
EP01050	50	58.6	1	3	175	570	30	0.169	Production
EP01052	50.8	59.4	1	3	175	580	30	0.171	Good
EP01055	55	63.6	1	3	190	630	30	0.183	Production
EP01060	60	68.6	1	3	200	680	30	0.198	Good
EP01063	63.5	72.1	1	3	230	720	30	0.311	Good
EP01065	65	73.6	1	3	230	740	30	0.318	Production
EP01070	70	79.6	1	3	250	800	30	0.344	Good
EP01076	76.2	85.8	1	2.5	270	870	30	0.371	Good
EP01080	80	90.4	1	2.5	290	970	30	0.391	Good
EP01090	90	101	1	2.5	360	1140	30	0.581	Good
EP01100	100	112	1	2.5	400	1340	30	0.644	Good
EP01102	102	114	1	2.5	400	1360	30	0.655	Good
EP01110	110	122	1	2.5	440	1480	30	0.939	Production
EP01120	120	132	1	2.5	470	1610	30	1.02	Good
EP01127	127	139	1	2.5	500	1700	30	1.07	Good
EP01130	130	142	1	2.5	520	1740	30	1.09	Production
EP01140	140	152	1	2	570	1910	30	1.17	Production
EP01150	152	165	1	2	600	2130	20	1.26	Good
EP01152	152	166	1	2	600	2140	20	1.27	Production
EP01160	160	175	1	2	600	2310	20	1.34	Production
EP01180	180	195	1	0.4	250	2590	20	1.50	Production
EP01203	203	222	1.2	1	400	3180	20	1.70	Production
EP01254	254	273	1.2	1	500	3950	10	1.40	Production
EP01305	305	324	1.2	0.8	610	4710	10	1.66	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
