Eolo PU Food - Ether Polyurethane Ducting Reinforced with Rigid PVC Helix (Light Duty)

Product Code: EU01

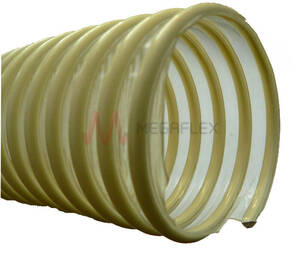

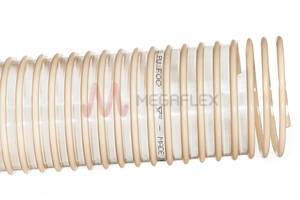

Eolo PU Food Ether Polyurethane Ducting with Rigid PVC Helix (Light Duty)

Description

Applications
Suction of liquids and dry food such as grains, animal feed, sugar, flour, seeds etc. Suitable for fatty foods, but not for milk or dairy products.

Technical

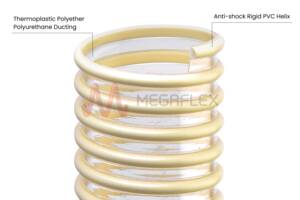

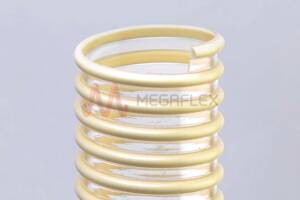

Ether based PU wall, food grade, with an anti-shock rigid PVC spiral. Completely smooth inside, corrugated outside.

Properties
Light duty product with a PU wall thickness from 0.4 to 0.8 mm, light, flexible and easy to bend extremely resistant to abrasion and repetative flexing, this hose features high mechanical properties. Excellent resistance to microbes, hydrolysis, ozone, weather conditions, most chemicals. Halogen free and conforms to RoHS as well as free from phthalates.

Standards
Food grade according to FDA Reg. CFR 21 -Item 177.2600 (aqueous and fatty food) and to EU Regulation 10/2011, (classes A, B, C, and D2) it can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Accessories

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
Suitable for alcohol up to 20%.

Temperature

-40°C to 90°C, intermittently as high as 125°C

Suitable Media

Flour
Seeds
Powders
Sugar
Granules
Foodstuff

Applications

Combined machines
Agricultural vehicles
Seed drills

Construction

Wall: TPU
Helix: PVC
Surface Finish: Smooth

Available Colours

Clear
Ivory

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

EU01013	13	18.6	0.4	2.5	20	80	20	0.013	Production
EU01016	16	21.6	0.4	2.5	25	100	20	0.018	Production
EU01019	19.1	24.7	0.4	2.5	25	110	20	0.022	Production
EU01020	20	25.6	0.4	2.5	25	120	20	0.024	Good
EU01022	22	27.6	0.4	2.5	28	130	20	0.028	Production
EU01025	25	30.6	0.4	2.5	30	150	20	0.034	Good
EU01030	30	35.6	0.4	2.5	35	170	20	0.051	Good
EU01032	31.8	37.6	0.4	2	35	190	20	0.054	Good
EU01035	35	41	0.5	2	45	210	20	0.059	Good
EU01038	38.1	44.3	0.5	2	50	240	20	0.064	Good
EU01040	40	46.2	0.5	2	60	260	20	0.067	Good
EU01045	45	51.4	0.5	2	65	300	20	0.099	Good
EU01050	50	56.8	0.5	2	70	350	20	0.109	Production
EU01052	50.8	57.6	0.5	2	70	350	20	0.111	Good
EU01055	55	62.2	0.5	2	75	410	20	0.119	Production
EU01060	60	67.6	0.5	1.6	80	490	20	0.130	Good
EU01063	63.5	71.3	0.5	1.6	80	540	20	0.183	Good
EU01065	65	72.8	0.5	1.6	90	550	20	0.186	Production
EU01070	70	78.4	0.6	1.6	95	590	30	0.339	Good
EU01076	76.2	84.6	0.6	1.6	100	640	30	0.365	Good
EU01080	80	89	0.6	1.6	110	680	30	0.384	Good
EU01090	90	99.2	0.6	1.4	125	790	30	0.429	Good
EU01100	100	110	0.6	1.3	140	850	30	0.631	Good
EU01102	102	112	0.6	1.3	140	870	30	0.643	Good
EU01110	110	120	0.6	1.2	150	1000	30	0.692	Good
EU01120	120	131	0.6	1	160	1190	30	0.753	Good
EU01127	127	138	0.6	1	170	1260	30	0.794	Good
EU01130	130	141	0.7	0.9	170	1440	20	0.611	Good
EU01140	140	151	0.7	0.9	180	1540	20	0.654	Good
EU01150	152	163	0.7	0.8	200	1600	20	0.939	Good
EU01152	152	164	0.7	0.8	200	1610	20	0.945	Good
EU01160	160	174	0.7	0.7	220	2050	20	0.893	Good
EU01180	180	194	0.7	0.4	250	2300	20	1.49	Good
EU01200	200	214	0.7	0.4	260	2370	20	1.65	Good
EU01203	203	218	0.7	0.4	260	2410	20	1.67	Production
EU01250	250	266	0.8	0.4	300	3570	10	1.36	Good
EU01300	300	316	0.8	0.3	350	4450	10	1.62	Good
EU01305	305	321	0.8	0.3	350	4520	10	1.64	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
