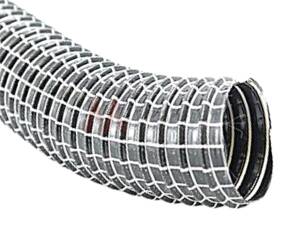

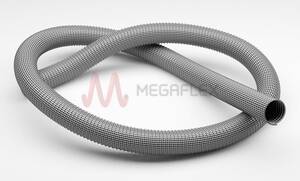

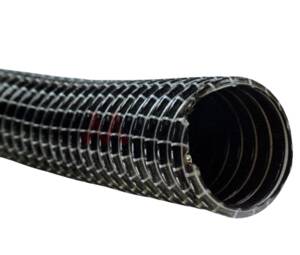

Master PVC High Flexibility Polyvinyl Chloride Ducting with Yarn Reinforcement and Plastic-coated Spring Steel Helix
Product Code: M468
Description
M807 - Master-PVC Flex PVC transport and suction hose, lightweight, very flexible, yarn reinforced

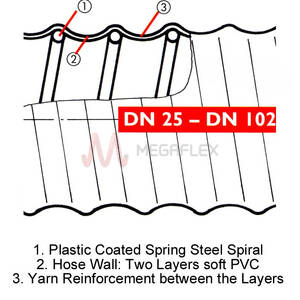

Material
hose wall: two layers of soft PVC with yarn reinforcement
spiral: spring steel wire, plastic coated
Applications
-transport and suction hose for solid, gaseous and liquid media
-transport of small particle dusts and powders
-domestic and industrial vacuum cleaners
-air conditioning/ventilation
-protection hose
-boat and caravan industry
-textile industry
-mechanical engineering
-welding fume extraction
-building drying
Properties
-good resistance to oil, alkalis and acids
-good chemical resistance
-nearly smooth inside
-extremely flexible and lightweight
-small bend radius
-gas tight
-RoHS compliant
Temperature
- °C to 70°C, intermittently as high as 85°C
Applications
- Domestic vacuum cleaners
- industrial vacuum cleaners and scrubbers
- dust extraction
- welding fumes
- cable protection
Construction
- Wall: PVC
- Reinforcement: Yarn
- Helix: Plastic-coated spring steel
- Surface Finish: Corrugated
Suitable Media
- Dust
- fine-grained particles
- welding fumes
Available Colours
- Black
Certification
- RoHS
| Part | Inner Diameter | Outer Diameter | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Max Production Length |
|---|---|---|---|---|---|---|---|---|
| M468-025 | 25 | 30 | 1 | 3.98 | 25 | 220 | 15 | 15 |
| M468-028 | 28 | 33 | 1 | 3.47 | 28 | 240 | 15 | 15 |
| M468-032 | 32 | 37 | 1 | 3.47 | 32 | 270 | 15 | 15 |
| M468-038 | 38 | 43 | 0.95 | 2.96 | 38 | 370 | 15 | 15 |
| M468-041 | 41 | 46 | 0.95 | 2.96 | 41 | 400 | 15 | 15 |
| M468-044 | 44 | 50 | 0.9 | 2.86 | 44 | 430 | 15 | 15 |
| M468-051 | 51 | 57 | 0.9 | 2.86 | 51 | 490 | 15 | 15 |
| M468-063 | 63 | 69 | 0.8 | 2.55 | 63 | 610 | 15 | 15 |
| M468-070 | 70 | 78 | 0.8 | 2.04 | 71 | 780 | 10 | 10 |
| M468-076 | 76 | 83 | 0.8 | 2.04 | 76 | 850 | 10 | 10 |
| M468-080 | 80 | 87 | 0.8 | 1.84 | 80 | 880 | 10 | 10 |
| M468-089 | 89 | 96 | 0.8 | 1.73 | 89 | 980 | 10 | 10 |
| M468-102 | 102 | 109 | 0.8 | 1.53 | 102 | 1150 | 10 | 10 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
