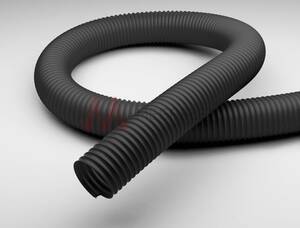

Master-Santo H High Temperature Thermoplastic Vulcanisate (TPV) Ducting with Spring Steel Wire Helix Reinforcement

Product Code: M242

Description

M604 - Master-Santo H TPV transport and suction hose, medium weight, for increased temperatures

Material
hose wall: thermoplastic vulcanisates (TPV)
spiral: spring steel wire

Applications
-suction of steam
-suction and extraction of air in engine construction
-transport of hot and cold air in vehicle and engine construction
-liquid and gaseous media
-for increased mechanical stress

Properties
-good chemical resistance to alkalis, acids and solvent vapours
-improved pressure and vacuum characteristics
-gas tight
-free of plasticisers and halogens
-generally good UV and ozone resistance
-robust
-very flexible, lightweight
-small bend radius
-nearly smooth inside
-optimum flow characteristics
-electrically conductive to BGR 132 by grounding spiral
-RoHS compliant

Temperature

-40°C to 130°C, intermittently as high as 150°C

Available Colours

Black

Part	Inner Diameter	Outer Diameter	Working Pressure	Vacuum Rating	Bend Radius	Weight	Availability

M242-25	25	33	1.46	0.99	47	250	Production
M242-26	26	33	1.46	0.92	47	250	Production
M242-32	32	41	1.14	0.92	60	350	Production
M242-38	38	47	1.09	0.82	69	400	Production
M242-40	40	49	1.05	0.82	72	410	Production
M242-45	45	55	1.03	0.81	80	470	Production
M242-50	50	60	1.02	0.79	86	540	Production
M242-51	51	61	1.02	0.79	87	550	Production
M242-55	55	65	0.96	0.76	95	590	Production
M242-60	60	70	0.89	0.74	102	640	Production
M242-65	65	75	0.84	0.66	112	690	Production
M242-70	70	80	0.79	0.66	117	760	Production
M242-75	75	86	0.7	0.59	125	790	Production
M242-76	76	87	0.7	0.59	126	800	Production
M242-80	80	91	0.7	0.59	132	870	Production
M242-90	90	101	0.58	0.52	149	940	Production
M242-100	100	110	0.53	0.44	164	1000	Production
M242-102	102	112	0.53	0.44	165	1010	Production
M242-110	110	121	0.47	0.44	179	1090	Production
M242-115	115	126	0.47	0.31	186	1130	Production
M242-120	120	131	0.46	0.31	194	1170	Production
M242-125	125	136	0.46	0.31	201	1240	Production
M242-127	127	138	0.46	0.31	203	1270	Production
M242-130	130	141	0.46	0.25	209	1310	Production
M242-140	140	151	0.37	0.25	224	1410	Production
M242-150	150	161	0.37	0.25	240	1490	Production
M242-152	152	163	0.37	0.25	242	1500	Production
M242-160	160	171	0.32	0.18	255	1730	Production
M242-170	170	181	0.32	0.18	270	1880	Production
M242-175	175	186	0.32	0.18	278	1960	Production
M242-180	180	191	0.26	0.18	285	2040	Production
M242-200	200	213	0.26	0.18	319	2220	Production
M242-203	203	215	0.26	0.12	321	2250	Production
M242-225	225	237	0.21	0.12	353	2500	Production
M242-250	250	261	0.21	0.12	388	2990	Production
M242-254	254	263	0.21	0.12	390	3070	Production
M242-275	275	288	0.16	0.12	426	3580	Production
M242-280	280	293	0.16	0.12	435	3640	Production
M242-300	300	313	0.16	0.12	465	3900	Production
M242-315	315	328	0.16	0.12	488	4130	Production
M242-325	325	338	0.16	0.12	503	4290	Production
M242-350	350	363	0.16	0.12	540	4840	Production
M242-375	375	388	0.11	0.07	580	5230	Production
M242-400	400	413	0.11	0.07	615	5690	Production
M242-450	450	463	0.11	0.07	690	6580	Production
M242-500	500	513	0.11	0.07	765	7380	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
