Next 09 Ether Polyurethane Ducting for Abrasive Media

Product Code: N9ET

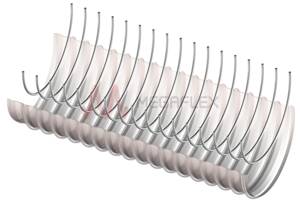

Next 09 Ether-PU Ducting Reinforced with TPU-Coated Inox Steel Helix

Description

Product Overview

Colour: Translucent

Applications

Applications: Food Hose, Pharmaceutical Hoses

Industries: Food, Abrasive Powders, Microbes Resistant, Pharmaceutical and Cosmetics, Street Cleaning, Leaf Collection and Paddock Cleaning, Dust Extraction, Antistatic Version, Plastics Industry, Glass and Ceramic, Woodworking, Granule Drying, Printing and Paper

Features

Technical Features: ether based polyurethane hose reinforced with a TPU-coated Inox steel spiral, to offer the best adhesion with the hose wall. Smooth inside to ensure optimization of flow properties.

Properties: Resistant to microbes and Hydrolysis. Good resistance to mineral oils and chemicals, excellent resistance to ozone and weather. Suitable to deliver food stuffs in accordance with FDA Regulations (title 21 CFR 177.2600). Very flexible even at low temperatures.

Next 09 is made using a special TPU that combines different properties which make the wall material permanently antistatic and resistant to UV, microbes and hydrolysis.

Standards: Free of Halogen and Phthalates, with raw materials in accordance to REACH and conform to RoHS Regulations. The hose can be antistatic according to TRB S 2153 by grounding the spiral.

Application Fields

Suction and transport hose in the Food and Pharmaceutical Industry. For street cleaning vehicles, in the chemical industry, and for all applications where a special microbe resistance is required.

For different coil lengths please contact our Sales Office.

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
Suitable for alcohol up to 50%.

Temperature

-40°C to 90°C, intermittently as high as 125°C

Applications

Food
Abrasive Powders
Microbes Resistant
Pharmaceutical and Cosmetics
Street Cleaning
Leaf Collection and Paddock Cleaning
Dust Extraction
Antistatic Version
Plastics Industry
Glass and Ceramic
Woodworking
Granule Drying
Printing and Paper

Electrical Resistance

Conductive to 10² Ω/m

Construction

Wall: TPU
Surface Finish: Smooth

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

N9ET030	30	0.9	5	40	230	20	0.051	Production
N9ET038	38.1	0.9	5	40	315	20	0.080	Good
N9ET040	40	0.9	5	40	320	20	0.084	Good
N9ET045	45	0.9	5	45	345	20	0.093	Production
N9ET052	50.8	0.9	4	50	375	20	0.103	Good
N9ET060	60	0.9	3	70	505	20	0.128	Production
N9ET063	63.5	0.9	3	70	535	20	0.135	Good
N9ET065	65	0.9	3	75	550	20	0.138	Production
N9ET070	70	0.9	3	90	690	20	0.198	Production
N9ET076	76.2	0.9	3	90	745	20	0.214	Good
N9ET080	80	0.9	3	95	745	20	0.224	Good
N9ET090	90	0.9	2.5	105	835	20	0.281	Production
N9ET100	100	0.9	2	135	855	20	0.309	Production
N9ET102	102	0.9	2	135	870	20	0.315	Good
N9ET110	110	0.9	2	145	905	20	0.507	Production
N9ET120	120	0.9	1.5	160	985	20	0.550	Good
N9ET127	127	0.9	1.5	210	1040	20	0.581	Production
N9ET140	140	0.9	1	185	1200	20	0.639	Production
N9ET152	152	0.9	1	230	1305	20	0.820	Production
N9ET160	160	0.9	1	250	1370	20	0.859	Production
N9ET180	180	0.9	0.5	270	2165	20	0.969	Production
N9ET203	203	0.9	0.5	300	2435	15	1.09	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
