Vulcano 04 ET Transparent ether-based TPU hose


Product Code: VE01

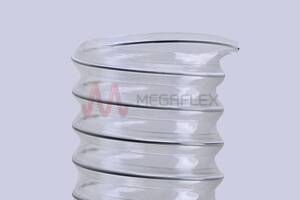

Vulcano 04 ET Transparent Ether-TPU Ducting with TPU-Coated Grey Steel Helix

Description


Vulcano 04 ET

Introducing Vulcano 04 ET — a transparent ether-based TPU hose reinforced with a high adhesion TPU coated grey colored steel spiral. Designed for the light suction of abrasive powders, flours, and dry food, it is particularly effective in the food industry.

Key Features:

  • Material: Transparent ether-based TPU.
  • Antistatic: Permanent antistatic wall material.
  • Food Grade: Compliant with EU 10/2011 and FDA CFR 21-Item 177.2600.

Applications:

Suitable for the light suction of abrasive powders, flours, and dry food in the food industry.

Choose Vulcano 04 ET for a reliable, high-performance solution.


Material:

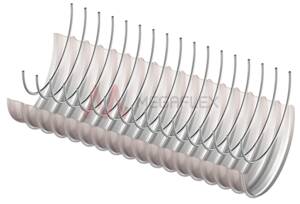

Transparent ether-based TPU hose reinforced with a high adhesion TPU coated grey colored steel spiral.



Food Quality


  • FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
  • EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
  • EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
  • EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
  • EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
  • EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
  • Suitable for alcohol up to 20%.

Temperature


  • -40°C to 90°C

Applications


  • Light suction of abrasive powders
  • flours
  • and dry food in the food industry

Electrical Resistance


  • Antistatic to 109 Ω/m by grounding the copper braid wire.

Construction


  • Wall: TPU
  • Helix: TPU-coated Steel
  • Surface Finish: Corrugated

Suitable Media


  • Air
  • fumes
  • abrasive powders
  • flours
  • dry food

Certification


  • EU 10/2011
  • FDA 21 CFR 177.2600

Available Colours


  • Clear
PartInner DiameterWall ThicknessVacuum RatingBend RadiusWeightLengthCompressed?VolumeAvailability
VE01025250.40.42513020No0.048Production
VE01030300.40.42515020No0.068Production
VE01032320.40.42516020No0.072Production
VE01035350.40.42517020No0.077Production
VE01038380.40.43018520No0.083Production
VE01040400.40.43219520No0.092Production
VE01045450.40.43621520No0.136Production
VE01051510.40.44020020No0.151Production
VE01060600.40.45023020No0.174Production
VE01063630.40.45524520No0.182Good
VE01065650.40.45625020No0.187Good
VE01070700.40.46029520No0.200Good
VE01076760.40.46531520No0.215Good
VE01080800.40.46533020No0.225Good
VE01082820.40.46534020No0.230Good
VE01090900.40.47537020No0.251Good
VE011001000.40.38541015No0.311Good
VE011021020.40.38541515No0.317Good
VE011101100.40.39045015No0.340Good
VE011151150.40.39547015No0.354Good
VE011201200.40.2510048515No0.553Good
VE011271270.40.2510559015No0.583Good
VE011301300.40.210560015No0.596Good
VE011401400.40.211564515No0.639Good
VE011521520.40.212570015No0.691Good
VE011601600.40.1513086515No0.860Good
VE011651650.40.1513089015No0.886Good
VE011801800.40.1515097015No0.963Good
VE011821820.40.1515098015No0.973Good
VE012032030.40.1165109515No1.09Good
VE012202200.40.1185118010Yes0.115Good
VE012282280.40.1185122510Yes0.124Good
VE012542540.40.1210136010Yes0.152Good
VE012792790.40.08230149010Yes0.182Good
VE013053050.40.08250163010Yes0.218Good
VE013153150.40.07275168510Yes0.232Good
VE013563560.40.07300190010Yes0.295Good
VE014064060.40.06350216010Yes0.381Good
VE014504500.40.06350262010Yes0.466Good
VE015005000.40.06350291010Yes0.572Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
