Vulcano PU Z - Clear Ester Polyurethane Ducting for Woodworking and Cleaning Industries

Product Code: VZ01

Vulcano PU Z Ester Polyurethane Ducting for Woodworking and Cleaning Industries

Description

Applications
Woodworking industry, dust extraction, vapours, small industrial cleaning and suction plants. Suction of dry food only.

Technical Features

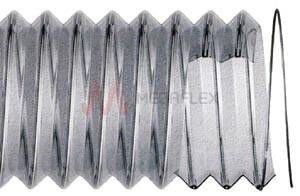

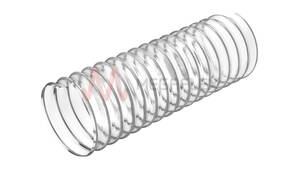

Ester based Polyurethane duct reinforced with a steel spiral zinc coated. Wall thickness from 0.35 to 0.50mm.

Properties
Very light and flexible, axially compressible (about 5:1) for easy handling and costs saving in stocking and transporting. The PU-coated spiral allows more bending sessions, thus the duct has good mechanical properties and it is especially suitable for dynamic applications.Resistant to abrasion. Halogens free conform to RoHS and phthalates free.

Standards
It can be made electrically bonded by earthing the steel spiral in accordance to TRB S 2153. (For further info regarding Electrical Resistance contact us). The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC). For dry food only according to EU Regulation 10/2011, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Temperature

-40°C to 90°C, intermittently as high as 125°C

Applications

Woodworking
Carpentry
Dedusting
Small industrial vacuum cleaners

Food Quality

EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Construction

Wall: TPU
Helix: Steel
Surface Finish: Corrugated

Electrical Resistance

Conductive to 10² Ω/m

Suitable Media

Abrasive materials

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Compressed?	Volume	Availability

VZ01040	40	0.35	0.4	20	185	20	No	0.088	Production
VZ01050	50	0.35	0.4	25	225	20	No	0.106	Production
VZ01051	51	0.35	0.4	25.5	230	20	No	0.108	Good
VZ01060	60	0.35	0.4	30	275	20	No	0.132	Good
VZ01063	63	0.35	0.4	31.5	285	20	No	0.184	Good
VZ01065	65	0.35	0.4	32.5	295	20	No	0.189	Production
VZ01070	70	0.35	0.4	35	360	20	No	0.202	Good
VZ01076	76	0.35	0.4	38	385	20	No	0.218	Good
VZ01080	80	0.35	0.4	40	405	20	No	0.228	Good
VZ01082	82	0.35	0.4	41	415	20	No	0.233	Production
VZ01090	90	0.35	0.4	45	455	20	No	0.285	Good
VZ01100	100	0.4	0.3	50	510	15	No	0.317	Good
VZ01102	102	0.4	0.3	51	520	15	No	0.323	Good
VZ01104	104	0.4	0.3	52	530	15	No	0.328	Production
VZ01110	110	0.4	0.3	55	560	15	No	0.346	Good
VZ01120	120	0.4	0.25	60	605		No	0.374	Good
VZ01127	127	0.4	0.25	63.5	640	15	No	0.395	Good
VZ01130	130	0.4	0.2	65	660	15	No	0.409	Good
VZ01140	140	0.4	0.2	70	710	15	No	0.657	Good
VZ01150	150	0.4	0.2	75	755	15	No	0.700	Good
VZ01152	152	0.4	0.2	76	765	15	No	0.708	Good
VZ01160	160	0.45	0.15	80	895	15	No	0.752	Good
VZ01165	165	0.45	0.15	82.5	925	15	No	0.773	Production
VZ01170	170	0.45	0.15	85	950	15	No	0.942	Production
VZ01180	180	0.45	0.15	90	1005	15	No	0.993	Good
VZ01200	200	0.45	0.1	100	1110	15	No	1.10	Good
VZ01203	203	0.45	0.1	102	1125	15	No	1.11	Good
VZ01210	210	0.45	0.1	105	1160	10	No	0.110	Production
VZ01220	220	0.45	0.1	110	1215	10	No	0.120	Good
VZ01228	228	0.45	0.1	114	1260	10	No	0.129	Production
VZ01250	250	0.5	0.1	125	1310	10	Yes	0.155	Good
VZ01254	254	0.5	0.1	127	1330	10	Yes	0.159	Good
VZ01279	279	0.5	0.08	140	1460	10	Yes	0.190	Production
VZ01300	300	0.5	0.08	150	1565	10	Yes	0.218	Good
VZ01305	305	0.5	0.08	153	1590	10	Yes	0.225	Good
VZ01315	315	0.5	0.07	158	1640	10	Yes	0.240	Production
VZ01350	350	0.5	0.07	175	1815	10	Yes	0.293	Good
VZ01400	400	0.5	0.06	200	2125	10	Yes	0.379	Good
VZ01450	450	0.5	0.06	225	2640	6	Yes	0.347	Production
VZ01500	500	0.5	0.06	250	2925	6	Yes	0.426	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
