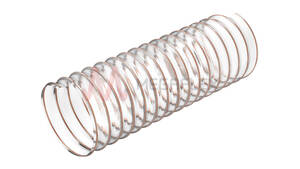

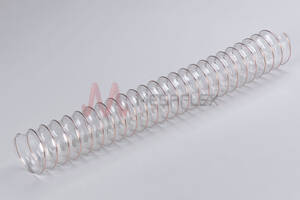

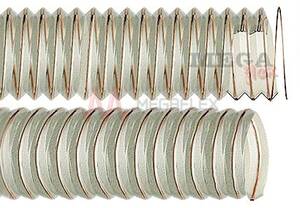

Vulcano PU ZR - Clear Ester Polyurethane Ducting for Woodworking and Cleaning Industries

Product Code: ZR01

Vulcano PU ZR Ester Polyurethane Ducting for Woodworking and Cleaning Industries

Description

Applications
Woodworking industry, dust extraction, vapours, small industrial cleaning and suction plants. Suction of dry food only.

Technical Features
Ester based Polyurethane duct reinforced with a steel spiral coppered coated. Wall thickness from 0.35 to 0.50mm.

Properties
Very light and flexible, axially compressible (about 5:1) for easy handling and costs saving in stocking and transporting. The PU-coated spiral allows more bending sessions, thus the duct has good mechanical properties and it is especially suitable for dynamic applications.Resistant to abrasion. Halogens free conform to RoHS and phthalates free.

Standards
It can be made electrically bonded by earthing the steel spiral in accordance to TRB S 2153. (For further info regarding Electrical Resistance contact us). The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC). For dry food only according to EU Regulation 10/2011, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Temperature

-40°C to 90°C, intermittently as high as 125°C

Applications

Woodworking
Carpentry
Dedusting
Small industrial vacuum cleaners

Food Quality

EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

Construction

Wall: TPU
Helix: Steel
Surface Finish: Corrugated

Suitable Media

Abrasive dust
Sawdust

Available Colours

Clear

Part	Inner Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Compressed?	Volume	Availability

ZR01040	40	0.35	0.4	20	160	20	No	0.088	Production
ZR01050	50	0.35	0.4	25	195	20	No	0.106	Good
ZR01060	60	0.35	0.4	30	240	20	No	0.132	Good
ZR01063	63	0.35	0.4	31.5	250	20	No	0.184	Good
ZR01065	65	0.35	0.4	32.5	260	20	No	0.189	Production
ZR01070	70	0.35	0.4	35	360	20	No	0.202	Good
ZR01076	76	0.35	0.4	38	385	20	No	0.218	Good
ZR01080	80	0.35	0.4	40	405		No	0.228	Good
ZR01082	82	0.35	0.4	41	415	20	No	0.233	Production
ZR01090	90	0.35	0.4	45	455	20	No	0.285	Good
ZR01100	100	0.4	0.3	50	510		No	0.317	Good
ZR01102	102	0.4	0.3	51	520	15	No	0.323	Good
ZR01104	104	0.4	0.3	52	530	15	No	0.328	Production
ZR01110	110	0.4	0.3	55	560	15	No	0.346	Good
ZR01115	115	0.4	0.25	57.5	580	15	No	0.36	Production
ZR01120	120	0.4	0.25	60	605		No	0.374	Good
ZR01127	127	0.4	0.25	63.5	640	15	No	0.395	Good
ZR01130	130	0.4	0.2	65	660	15	No	0.409	Good
ZR01140	140	0.4	0.2	70	710	15	No	0.657	Good
ZR01150	150	0.4	0.2	75	755		No	0.700	Good
ZR01152	152	0.4	0.2	76	765	15	No	0.708	Good
ZR01160	160	0.45	0.15	80	895	15	No	0.752	Good
ZR01175	175	0.45	0.15	87.5	975	15	No	0.816	Production
ZR01180	180	0.45	0.15	90	1005	15	No	0.838	Good
ZR01200	200	0.45	0.1	100	1110		No	1.10	Good
ZR01203	203	0.45	0.1	102	1125	15	No	1.11	Production
ZR01210	210	0.45	0.1	105	1160	15	No	1.15	Good
ZR01220	220	0.45	0.1	110	1215	15	No	1.20	Good
ZR01225	225	0.45	0.1	113	1240	15	No	1.22	Production
ZR01228	228	0.45	0.1	114	1260	10	No	1.24	Production
ZR01250	250	0.5	0.1	125	1310	10	No	1.36	Good
ZR01254	254	0.5	0.1	127	1330	10	No	1.38	Production
ZR01279	279	0.5	0.08	140	1460	10	No	1.51	Production
ZR01300	300	0.5	0.08	150	1565	10	No	1.61	Good
ZR01305	305	0.5	0.08	153	1590	10	No	1.64	Production
ZR01315	315	0.5	0.08	158	1640	10	No	1.69	Production
ZR01325	325	0.5	0.07	163	1690	10	No	0.254	Production
ZR01350	350	0.5	0.07	175	1815	10	Yes	0.293	Production
ZR01400	400	0.5	0.06	200	2125	10	Yes	0.379	Production
ZR01450	450	0.5	0.06	225	2640	6	Yes	0.347	Production
ZR01500	500	0.5	0.06	250	2925	6	Yes	0.426	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
