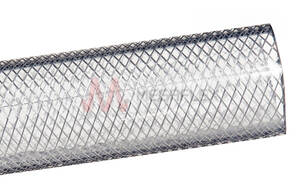

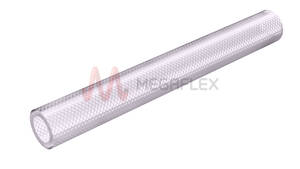

Arianna - Clear PVC Suction and Delivery Hose Reinforced with High Tenacity Polyester Yarn (Biovinyl)

Product Code: B101

Arianna Clear PVC S&D Hose Reinforced with High Tenacity Polyester Yarn (Biovinyl)

Description

Applications
Ideal for delivery of food liquids such as drinks, beverages, fruit juices, wine, vinegar and spirits with max. Alcohol content of 20% and dry food. Not suitable for milk, dairy products and fatty food. It is often used for filling machines and dispensers.

Technical
Flexible hose reinforced with a high tenacity polyester yarn, produced with Biovinyl™: a revolutionary bio-based compound, obtained mainly from renewable biological sources. It allows for the reduction of CO2 emissions during its production and disposal process.

Properties
Extremely smooth inside and outside to ensure the optimization of flow. Resistant to several chemicals, weather conditions, microbes, hydrolysis, ageing, ozone, UV.

Standards
Food grade according to EC 10/2011 Regulation (classes A, B, C and dry food) and to FDA (CFR 21 Parts 170 to 199 Item 175.300), RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Accessories
Reusable system, Crimped system

Food Quality

Suitable for potable water.
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
Suitable for alcohol up to 50%.

Temperature

-10°C to 60°C

Suitable Media

Food liquids
Beverages
Fruit juices
Wine
Liquors
Milk
By-products

Construction

Wall: PVC
Reinforcement: Polyester
Surface Finish: Smooth

Applications

Filling Machines
Dispensers

Available Colours

Clear

Part	Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure	Bend Radius	Weight	Length	Volume	Availability

B101060110	6	11	20.8	63	30	85	100	0.023	Production
B101060120	6	12	20.8	63	30	105	100	0.025	Good
B101080130	8	13	22.9	69	40	105	100	0.028	Production
B101080140	8	14	22.9	69	40	130	100	0.032	Good
B101090150	9	15	19.0	57	50	140	100	0.036	Production
B101100150	10	15	16.5	48	50	120	100	0.036	Production
B101100160	10	16	16.5	48	50	150	100	0.041	Good
B101120170	12	17	12.2	36	60	140	100	0.044	Production
B101120180	12	18	12.2	36	60	175	100	0.050	Good
B101125185	12.5	18.5	11.8	36	60	180	100	0.051	Production
B101130180	13	18	10.9	33	70	150	100	0.050	Production
B101130190	13	19	10.9	33	70	185	100	0.058	Good
B101150200	15	20	10.8	33	80	170	50	0.034	Production
B101150210	15	21	10.8	33	80	210	50	0.035	Production
B101160210	16	21	10.2	30	80	180	50	0.035	Production
B101160220	16	22	10.2	30	80	220	50	0.041	Good
B101190250	19	25	9.21	27	100	255	50	0.083	Production
B101190260	19	26	9.21	27	100	305	50	0.085	Good
B101250320	25	32	8.01	24	130	385	50	0.099	Production
B101250330	25	33	7.61	24	130	450	50	0.102	Good
B101300380	30	38	6.11	18	150	525	50	0.141	Good
B101320410	32	41	5.32	15	160	635	50	0.165	Production
B101320420	32	42	5.47	15	160	710	50	0.168	Good
B101380480	38	48	4.05	12	190	825	50	0.271	Good
B101400500	40	50	3.70	12	200	865	50	0.303	Good
B101500620	50	62	3.66	12	250	1290	50	0.391	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
