Bacco AS Antistatic Clear Plasticized Vinyl S&D Hose with Red PVC Helix
Product Code: BF02
Description
Our Bacco Anti-Static Suction and Delivery Hose is the ideal conduit for managing beverages with alcohol content up to 50%, perfect for applications involving wine, liquor, and other food-grade liquids.
Features and Applications

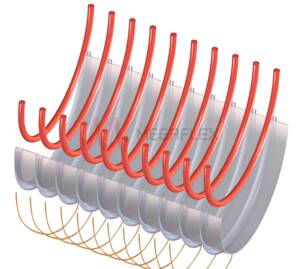

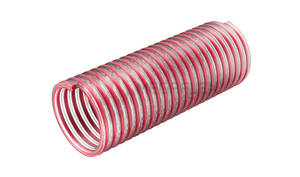

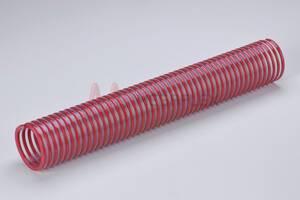

Crafted from transparent specialised plasticised vinyl compound (PVC-P) and reinforced with a red anti-shock rigid PVC spiral, Bacco AS features a completely smooth interior for optimal flow, with a slightly corrugated exterior. This design ensures it's not only efficient for both suction and delivery but also robust against environmental and chemical stresses.
Properties
This food-grade hose is entirely phthalate-free, minimising any risk of component leaching into the transported substances. Both the hard plastic helix and the hose wall are food-safe, making Bacco AS a completely food-compatible solution. It stands up to mechanical loads, atmospheric agents, aging, UV rays, ozone, hydrolysis, and a variety of chemicals, ensuring long-term reliability.
Not recommended for milk, dairy, or fatty foods. Made antistatic with a copper wire, providing electrical bonding as per ISO 8031 and ATEX directives, with an electrical resistance of R ≤ 102 Ohm/m. Bore Finish: Smooth
Food Quality
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
Temperature
- -10°C to 60°C
Suitable Media
- Wine
- Marcs
- Spirits
- Liquors
- Juices
- Vinegar
- Food liquids
- Other beverages
Certification
- EU 10/2011
- ISO 8031
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- RoHS
- REACH
Electrical Resistance
- Conductive to 102 Ω/m by grounding the copper braid wire.
Applications
- Liquid food industry
- Wine making
- Brewery

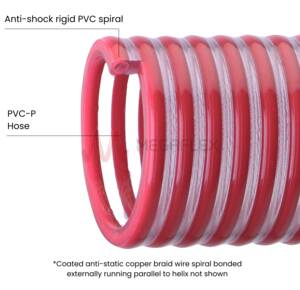

Construction
- Wall: PVC-P
- Helix: PVC
Available Colours
- Clear
- Red
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume |
|---|---|---|---|---|---|---|---|---|---|---|
| BF02020 | 20 | 27 | 3.2 | 9 | 27 | 10 | 110 | 310 | 50 | 0.07 |
| BF02025 | 25 | 32.4 | 3.3 | 8 | 24 | 10 | 170 | 400 | 50 | 0.094 |
| BF02030 | 30 | 37.8 | 3.5 | 8 | 24 | 10 | 190 | 500 | 50 | 0.121 |
| BF02032 | 31.8 | 39.6 | 3.5 | 7 | 21 | 10 | 230 | 520 | 50 | 0.14 |
| BF02038 | 38.1 | 47.1 | 4.1 | 7 | 21 | 10 | 260 | 730 | 50 | 0.191 |
| BF02040 | 40 | 49.2 | 4.1 | 7 | 21 | 10 | 270 | 760 | 50 | 0.208 |
| BF02045 | 45 | 54.8 | 4.4 | 7 | 21 | 10 | 310 | 920 | 50 | 0.242 |
| BF02050 | 50 | 60.6 | 4.7 | 6 | 18 | 10 | 350 | 1100 | 50 | 0.315 |
| BF02052 | 50.8 | 61.4 | 4.7 | 6 | 18 | 10 | 350 | 1120 | 50 | 0.319 |
| BF02060 | 60 | 71.6 | 5.2 | 6 | 18 | 10 | 415 | 1470 | 50 | 0.469 |
| BF02063 | 63.5 | 75.7 | 5.5 | 6 | 18 | 10 | 440 | 1630 | 50 | 0.511 |
| BF02070 | 70 | 82.6 | 5.6 | 5 | 15 | 10 | 480 | 1800 | 50 | 0.611 |
| BF02076 | 76.2 | 88.8 | 5.7 | 5 | 15 | 10 | 525 | 1960 | 50 | 0.657 |
| BF02080 | 80 | 93.6 | 6.1 | 5 | 15 | 10 | 555 | 2200 | 30 | 0.55 |
| BF02090 | 90 | 104 | 6.4 | 5 | 15 | 10 | 630 | 2610 | 30 | 0.631 |
| BF02100 | 100 | 116 | 7.3 | 5 | 15 | 9 | 695 | 3310 | 30 | 0.784 |
| BF02102 | 102 | 118 | 7.3 | 5 | 15 | 9 | 695 | 3360 | 30 | 0.797 |
| BF02120 | 120 | 137 | 7.8 | 4 | 12 | 9 | 900 | 4210 | 30 | 1.16 |
| BF02127 | 127 | 144 | 7.7 | 4 | 12 | 9 | 1000 | 4410 | 30 | 1.25 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
