Zeus PU Food - Ether Polyurethane S&D Hose Reinforced with Rigid PVC Helix (Heavy Duty)

Product Code: ZE01

Ether Polyurethane Suction & Delivery Hose

Description

Applications
Suction and delivery of alimentary products even fatty food and liquids. Not suitable milk or dairy products. Indicated for suction and transport of sugar, flour, grains and animal feeds etc.

Technical

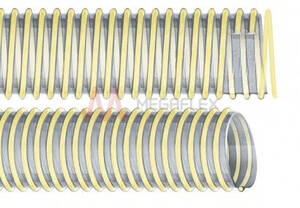

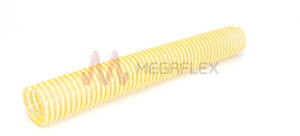

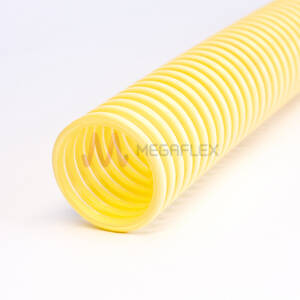

Ether based Polyurethane duct reinforced with an anti-shock rigid PVC spiral. Completely smooth inside, corrugated outside. Heavy duty product with a wall thickness from 1.2 to 2.0 mm.

Properties
Heavy duty product with a PU wall thickness from 1.2 up to 2 mm resistant to abrasion and flexion, this hose features high mechanical properties. Excellent resistance to microbes, hydrolysis, ozone, weather conditions, most chemicals. Halogen free and conforms to RoHS as well as free from phthalates.

Standards
Food grade according to FDA REg. Cfr 21-Item 17.2600 (aqueous and fatty food) and to EU Reg. 10/2011, classes A, B, C, D2, REACH Regulation (1907/2006), TRB S 2153. It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC

Accessories

Food Quality

FDA regulations (Title 21 CFR 177.2600 Part D for dry foods).
EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.

Temperature

-40°C to 80°C

Suitable Media

Food powders
Animal feed
Granules
Grains
Sugar
Salt
Dry fruit
Fatty food

Applications

Agricultural vehicles
Seed drills
Combined machines

Construction

Wall: PU
Helix: PVC
Surface Finish: Smooth

Available Colours

Clear
Ivory

Part	Inner Diameter	Outer Diameter	Wall Thickness	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

ZE01030	30	37.4	1.2	9	130	330	30	0.072	Production
ZE01032	31.8	39.4	1.2	9	140	370	30	0.076	Good
ZE01035	35	43	1.3	9	160	410	30	0.083	Production
ZE01038	38.1	46.1	1.3	9	180	440	30	0.118	Good
ZE01040	40	48.6	1.5	9	190	530	30	0.124	Good
ZE01045	45	53.8	1.5	8	200	610	30	0.155	Production
ZE01050	50	59.6	1.5	8	215	730	30	0.172	Production
ZE01052	50.8	60.4	1.5	8	215	740	30	0.174	Good
ZE01055	55	64.8	1.5	8	225	820	30	0.187	Production
ZE01057	57	66.8	1.5	8	225	850	30	0.192	Production
ZE01060	60	70	1.5	8	230	920	30	0.302	Good
ZE01063	63.5	73.5	1.5	8	240	970	30	0.318	Good
ZE01065	65	75	1.5	8	240	990	30	0.324	Production
ZE01070	70	80.6	1.5	8	250	1020	30	0.348	Good
ZE01076	76.2	87.2	1.7	8	270	1200	30	0.377	Good
ZE01080	80	91.8	2	7	290	1350	30	0.397	Good
ZE01090	90	102	2	7	380	1510	30	0.782	Good
ZE01100	100	113	2	7	420	1710	30	0.865	Good
ZE01102	102	115	2	7	420	1740	30	0.880	Good
ZE01110	110	125	2	6.5	450	2340	30	0.962	Production
ZE01120	120	135	2	6.5	480	2540	30	1.04	Good
ZE01127	127	142	2	6.5	530	2680	30	1.09	Good
ZE01150	152	168	2	6	800	3280	20	1.34	Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
