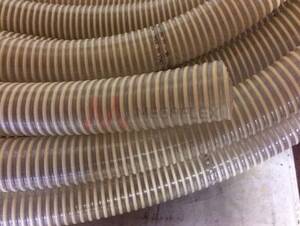

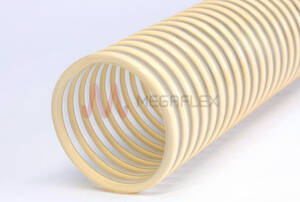

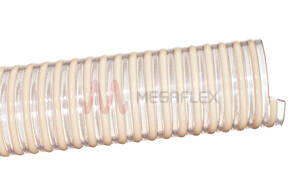

Nettuno FF - Clear Plasticized Vinyl Compound Walled S&D Hose with Rigid PVC Helix
Product Code: NQ01
Description
Applications
Ideal solution for suction and delivery of powders such as flours, grains, freeze dried foodstuffs. For liquids in general and beverages, fruit juices, vinegar, wine and liquor with alcohol concentration up to 20%.
Technical
Hose made from a special plasticized vinyl compound. Completely smooth inside to ensure optimization of flow properties, slightly corrugated outside.
Properties
Food grade hose completely free from phthalates in order to eliminate the leaching risk of those components into the delivered substances. The hard plastic helix is food grade as well as the wall, making Nettuno FF a total food hose. Resistant to loads, atmospheric agents, ageing, UV rays, ozone, hydrolysis and many chemicals.
Standards
Food grade according to FDA REg. Cfr 21-Item 17.2600 (aqueous and fatty food) and to EU Reg. 10/2011, classes A, B, C, D2, REACH Regulation (1907/2006), TRB S 2153. It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.
Accessories
Food Quality
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
Temperature
- 10°C to 60°C
Suitable Media
- Flour
- Light grains
- Freeze dried foodstuffs
- Liquid
- Beverages
- Juices
- Milk
- Vinegar
- Wine
- Liquour
Construction
- Wall: PVC-P
- Helix: PVC
- Surface Finish: Smooth
Applications
- Agriculture
- Tank trucks
- Spraying vehicles
Available Colours
- Clear
- Ivory
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Straight Length? | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NQ01013 | 13 | 18.4 | 2.4 | 10 | 30 | 7 | 75 | 150 | 50 | No | 0.033 | Good |
| NQ01016 | 16 | 21.6 | 2.5 | 8 | 24 | 7 | 90 | 190 | 50 | No | 0.039 | Good |
| NQ01019 | 19.1 | 24.9 | 2.6 | 7 | 21 | 7 | 110 | 230 | 50 | No | 0.054 | Production |
| NQ01020 | 20 | 25.8 | 2.6 | 7 | 21 | 7 | 110 | 240 | 50 | No | 0.056 | Good |
| NQ01022 | 22 | 27.8 | 2.6 | 6.67 | 20 | 7 | 110 | 260 | 50 | No | 0.060 | Production |
| NQ01025 | 25 | 30.8 | 2.6 | 6 | 18 | 7 | 130 | 290 | 50 | No | 0.078 | Good |
| NQ01030 | 30 | 36 | 2.7 | 5 | 15 | 7 | 150 | 360 | 50 | No | 0.115 | Good |
| NQ01032 | 31.8 | 37.8 | 2.7 | 5 | 15 | 7 | 155 | 380 | 50 | No | 0.121 | Good |
| NQ01035 | 35 | 42 | 2.7 | 4 | 12 | 7 | 170 | 440 | 50 | No | 0.134 | Good |
| NQ01038 | 38.1 | 45.5 | 2.9 | 4 | 12 | 7 | 180 | 510 | 50 | No | 0.146 | Good |
| NQ01039 | 39 | 46.4 | 2.9 | 4 | 12 | 7 | 190 | 530 | 50 | No | 0.178 | Production |
| NQ01040 | 40 | 47.6 | 3 | 4 | 12 | 7 | 195 | 560 | 50 | No | 0.183 | Good |
| NQ01045 | 45 | 53.2 | 3.2 | 4 | 12 | 7 | 215 | 680 | 50 | No | 0.238 | Good |
| NQ01050 | 50 | 59 | 3.3 | 4 | 12 | 7 | 235 | 810 | 50 | No | 0.255 | Good |
| NQ01051 | 51.5 | 60.5 | 3.3 | 4 | 12 | 7 | 245 | 830 | 50 | No | 0.261 | Production |
| NQ01052 | 50.8 | 59.8 | 3.3 | 4 | 12 | 7 | 235 | 820 | 50 | No | 0.258 | Good |
| NQ01055 | 55 | 64.2 | 3.4 | 4 | 12 | 7 | 255 | 910 | 50 | No | 0.370 | Production |
| NQ01057 | 57 | 66.2 | 3.4 | 4 | 12 | 7 | 265 | 940 | 50 | No | 0.381 | Production |
| NQ01060 | 60 | 69.2 | 3.4 | 4 | 12 | 7 | 275 | 990 | 50 | No | 0.399 | Good |
| NQ01063 | 63.5 | 72.9 | 3.4 | 4 | 12 | 7 | 290 | 1060 | 50 | No | 0.420 | Good |
| NQ01065 | 65 | 74.6 | 3.5 | 4 | 12 | 7 | 300 | 1120 | 50 | No | 0.430 | Production |
| NQ01070 | 70 | 80 | 3.7 | 3 | 9 | 7 | 320 | 1220 | 50 | No | 0.461 | Good |
| NQ01075 | 75 | 85.4 | 3.9 | 3 | 9 | 7 | 340 | 1380 | 50 | No | 0.615 | Good |
| NQ01076 | 76.2 | 86.6 | 3.9 | 3 | 9 | 7 | 340 | 1400 | 50 | No | 0.624 | Good |
| NQ01077 | 77.7 | 88.1 | 3.9 | 3 | 9 | 7 | 350 | 1420 | 50 | No | 0.634 | Production |
| NQ01080 | 80 | 91 | 4.2 | 3 | 9 | 7 | 365 | 1550 | 50 | No | 0.655 | Good |
| NQ01090 | 90 | 102 | 4.4 | 3 | 9 | 7 | 420 | 1860 | 30 | No | 0.733 | Good |
| NQ01100 | 100 | 113 | 4.8 | 3 | 9 | 7 | 470 | 2240 | 30 | No | 0.866 | Good |
| NQ01102 | 102 | 115 | 4.8 | 3 | 9 | 7 | 470 | 2280 | 30 | No | 0.882 | Good |
| NQ01103 | 104 | 117 | 4.9 | 3 | 9 | 7 | 490 | 2360 | 30 | No | 0.895 | Production |
| NQ01105 | 105 | 118 | 4.9 | 3 | 9 | 7 | 490 | 2400 | 30 | No | 0.906 | Production |
| NQ01110 | 110 | 123 | 5 | 3 | 9 | 6 | 520 | 2560 | 30 | No | 0.948 | Good |
| NQ01120 | 120 | 134 | 5.1 | 3 | 9 | 6 | 650 | 2840 | 30 | No | 1.03 | Good |
| NQ01127 | 127 | 141 | 5.2 | 3 | 9 | 5.5 | 680 | 3060 | 30 | No | 1.13 | Good |
| NQ01130 | 130 | 144 | 5.3 | 3 | 9 | 5 | 700 | 3260 | 30 | No | 1.16 | Production |
| NQ01140 | 140 | 155 | 5.7 | 3 | 9 | 5 | 750 | 3820 | 20 | No | 1.24 | Production |
| NQ01150 | 152 | 168 | 6.1 | 3 | 9 | 5 | 780 | 4390 | 20 | No | 1.34 | Good |
| NQ01152 | 153 | 169 | 6.1 | 3 | 9 | 5 | 780 | 4420 | 20 | No | 1.35 | Production |
| NQ01160 | 160 | 178 | 6.3 | 2 | 6 | 4.5 | 850 | 4780 | 20 | No | 1.42 | Production |
| NQ01200 | 200 | 220 | 6.5 | 2 | 6 | 4.5 | 1000 | 6520 | 10 | No | 2.13 | Production |
| NQ01203 | 203 | 223 | 6.5 | 2 | 6 | 4.5 | 1000 | 6620 | 10 | No | 2.16 | Production |
| NQ01250 | 250 | 271 | 6.8 | 1.5 | 4.5 | 4 | 1800 | 8600 | 10 | Yes | 0.734 | Production |
| NQ01254 | 254 | 275 | 6.8 | 1.5 | 4.5 | 4 | 1800 | 8730 | 10 | Yes | 0.756 | Production |
| NQ01300 | 300 | 322 | 7.2 | 1 | 3 | 4 | 2000 | 11030 | 10 | Yes | 1.04 | Production |
| NQ01305 | 305 | 327 | 7.2 | 1 | 3 | 4 | 2000 | 11200 | 10 | Yes | 1.07 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
