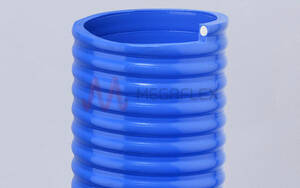

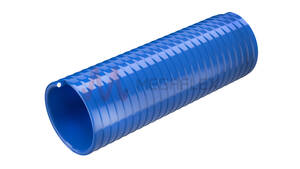

Giove SE PVC-P Hose Reinforced with Rigid PVC Helix for Agriculture
Product Code: GI06


Description
Introducing Giove SE PVC-P hose reinforced with an anti-shock rigid PVC spiral, offering enhanced performance compared to the Apollo hose. This hose is specially formulated to be suitable for use at low temperatures. It features a smooth inside surface and light corrugation outside, providing strength, flexibility, resistance to crushing, abrasion, atmospheric agents, and most chemicals. The Giove SE is ideal for the suction and delivery of water, slurry, mud, mixtures of wood, acids, latex, grains, and other materials in agriculture and industry, and is particularly suitable for use on tank trucks. An antistatic version with a copper wire is also available upon request.
Key Features:
- Applications: Suction and delivery of various materials in agriculture and industry, particularly suitable for tank trucks.
- Mediums: Suitable for water, slurry, mud, mixtures of wood, acids, latex, grains, and other materials.
- Properties: Suitable for low temperatures, anti-shock, resistant to crushing, abrasion, atmospheric agents, and most chemicals, antistatic version available.
- Diameter Range: 25-304.8 mm.
Temperature
- -25°C to 60°C
Suitable Media
- Water
- Slurry
- Mud
- Mixtures of wood
- Acids
- Latex
- Grains
Applications
- Agriculture
- Industry
- Tank trucks
Construction
- Wall: PVC-P
- Helix: PVC
Certification
- RoHS
- REACH
Available Colours
- Blue
Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
---|---|---|---|---|---|---|---|---|---|---|---|
GI06025 | 25 | 34.4 | 4.39 | 8 | 24 | 10 | 130 | 530 | 50 | 0.110 | Production |
GI06030 | 30 | 39.6 | 4.49 | 8 | 24 | 10 | 150 | 640 | 50 | 0.127 | Production |
GI06032 | 31.8 | 41.4 | 4.49 | 8 | 24 | 10 | 160 | 670 | 50 | 0.132 | Production |
GI06035 | 35 | 44.8 | 4.5 | 8 | 24 | 10 | 170 | 720 | 50 | 0.143 | Production |
GI06038 | 38.1 | 47.9 | 4.5 | 7 | 21 | 10 | 200 | 780 | 50 | 0.184 | Production |
GI06040 | 40 | 49.8 | 4.5 | 7 | 21 | 10 | 210 | 820 | 50 | 0.191 | Production |
GI06045 | 45 | 55.4 | 4.8 | 7 | 21 | 10 | 230 | 980 | 50 | 0.248 | Production |
GI06050 | 50 | 61.2 | 5.2 | 7 | 21 | 10 | 260 | 1180 | 50 | 0.264 | Production |
GI06052 | 50.8 | 62 | 5.2 | 7 | 21 | 10 | 260 | 1190 | 50 | 0.268 | Production |
GI06055 | 55 | 66.8 | 5.5 | 6 | 18 | 10 | 280 | 1370 | 50 | 0.385 | Production |
GI06060 | 60 | 72.4 | 5.7 | 6 | 18 | 10 | 320 | 1570 | 50 | 0.417 | Production |
GI06063 | 63.5 | 75.9 | 5.7 | 5 | 15 | 10 | 330 | 1650 | 50 | 0.437 | Production |
GI06070 | 70 | 82.6 | 5.8 | 5 | 15 | 10 | 360 | 1790 | 50 | 0.714 | Production |
GI06076 | 76.2 | 88.8 | 5.8 | 4.5 | 13.5 | 10 | 400 | 1940 | 50 | 0.767 | Production |
GI06080 | 80 | 93.2 | 6.1 | 4.5 | 13.5 | 10 | 430 | 2120 | 30 | 0.671 | Good |
GI06090 | 90 | 104 | 6.4 | 4.5 | 13.5 | 10 | 470 | 2500 | 30 | 0.747 | Good |
GI06100 | 100 | 116 | 7.3 | 4 | 12 | 9 | 510 | 3190 | 30 | 0.889 | Production |
GI06102 | 102 | 118 | 7.3 | 4 | 12 | 9 | 510 | 3250 | 30 | 0.905 | Good |
GI06105 | 105 | 121 | 7.3 | 4 | 12 | 9 | 520 | 3340 | 30 | 0.928 | Production |
GI06110 | 110 | 126 | 7.4 | 4 | 12 | 9 | 550 | 3520 | 30 | 0.968 | Production |
GI06120 | 120 | 136 | 7.5 | 4 | 12 | 9 | 600 | 3880 | 30 | 1.39 | Production |
GI06127 | 127 | 143 | 7.5 | 3.5 | 10.5 | 9 | 640 | 4090 | 30 | 1.47 | Production |
GI06150 | 152 | 172 | 9.2 | 3 | 9 | 9 | 770 | 6120 | 20 | 1.37 | Production |
GI06200 | 200 | 225 | 10.9 | 2 | 6 | 7 | 1000 | 9770 | 10 | 2.18 | Production |
GI06203 | 203 | 229 | 11 | 2 | 6 | 7 | 1000 | 10020 | 10 | 2.21 | Production |
GI06250 | 250 | 276 | 11.4 | 1.5 | 4.5 | 7 | 1700 | 12770 | 10 | 0.764 | Production |
GI06254 | 254 | 280 | 11.4 | 1.5 | 4.5 | 7 | 1700 | 12960 | 10 | 0.786 | Production |
GI06300 | 300 | 327 | 11.7 | 1 | 3 | 5 | 2200 | 15740 | 10 | 1.07 | Production |
GI06305 | 305 | 332 | 11.8 | 1 | 3 | 5 | 2200 | 16130 | 10 | 1.10 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
