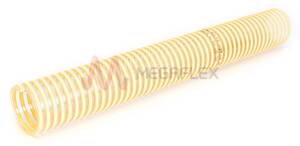

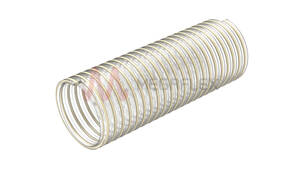

Nettuno PU AS Antistatic Ether-PU-lined Vinyl-compound Wall Ducting with Rigid PVC Helix

Product Code: NR02

Nettuno PU AS - Antistatic Food Hose | Chemical-Resistant, Clear

Description

Transparent PVC-P antistatic ducting with a smooth, Ether-Based TPU Liner reinforced with an ivory anti-shock rigid PVC helix. It's light, extremely flexible, and designed for applications requiring both chemical resistance and food safety, making it an ideal choice for the food and beverage industry where hygiene and material integrity are paramount.

Features and Applications

Ideal for the suction and delivery of food products such as powders, flours, light grains, and freeze-dried foodstuffs. It's also suitable for beverages with an alcohol content up to 20% and for transferring vegetable oils and fatty foods. Its design caters to industries needing a dependable food-grade solution.

Properties

Nettuno PU AS features a completely smooth interior for unhindered flow and ease in cleaning, reducing contamination risks. Its transparent PVC-P construction offers excellent visibility of the material flow, while the TPU liner and PVC spiral provide resistance to weathering, hydrolysis, and a broad spectrum of chemicals. The food-grade materials used in its construction comply with EU Regulation 10/2011, classes (A, B, C, D2). Made antistatic with the addition of a copper wire for applications requiring static dissipation. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 10² Ohm/m is according to ISO 8031 - ATEX Directives. Bore Finish: Smooth

Food Quality

EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
Suitable for alcohol up to 20%.

Temperature

-10°C to 60°C

Suitable Media

Food powders
Flour
Light grains
Freeze dried foodstuffs
Alcohol
Oil
Fatty foods
Concrete
Cement
Abrasive liquids

Applications

Agriculture
Food industry
Beverage transfer
Building
Cement works
Aggregates processing plants

Certification

ATEX DIRECTIVE 2014/34/UE and 99/92/EC
ISO 8031
EU 10/2011
RoHS
REACH

Electrical Resistance

Conductive to 10² Ω/m by grounding the copper braid wire.

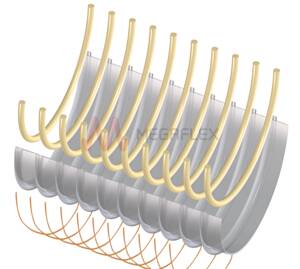

Construction

Inner Layer: Ether-TPU
Outer Cover: PVC-P
Helix: PVC

Available Colours

Clear
Ivory

Part	Inner Diameter	Outer Diameter	Wall Thickness	Working Pressure	Burst Pressure	Vacuum Rating	Bend Radius	Weight	Length	Volume	Availability

NR02025	25	31.8	2.7	5	15	7	125	310	30	0.061	Production
NR02030	30	37	2.8	5	15	7	150	380	30	0.071	Production
NR02032	31.8	39	2.9	5	15	7	155	420	30	0.100	Good
NR02035	35	42.4	3	5	15	7	170	470	30	0.109	Production
NR02038	38.1	45.9	3.1	5	15	7	185	530	30	0.118	Good
NR02040	40	48	3.1	5	15	7	195	560	30	0.123	Good
NR02045	45	53.6	3.1	5	15	7	215	660	30	0.154	Production
NR02050	50	59.4	3.3	5	15	7	235	790	30	0.171	Good
NR02052	50.8	60.2	3.3	5	15	7	235	800	30	0.173	Good
NR02055	55	64.6	3.4	5	15	7	255	890	30	0.279	Production
NR02057	57	66.6	3.4	5	15	7	265	930	30	0.288	Production
NR02060	60	69.6	3.4	5	15	7	275	970	30	0.301	Good
NR02063	63.5	73.1	3.5	5	15	7	290	1040	30	0.316	Good
NR02065	65	74.6	3.5	5	15	7	290	1060	30	0.322	Production
NR02070	70	80.2	3.7	5	15	7	320	1180	30	0.346	Production
NR02076	76.2	87	3.9	5	15	7	340	1380	30	0.501	Good
NR02080	80	91.4	4.1	4	12	7	365	1510	30	0.658	Production
NR02090	90	102	4.4	4	12	7	420	1830	30	0.783	Production
NR02100	100	113	4.7	4	12	7	470	2170	30	0.868	Production
NR02102	102	115	4.7	4	12	7	470	2210	30	0.883	Good
NR02110	110	124	5.1	4	12	6	520	2590	30	1.27	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
