Plutone A SE Super Flexible PVC S&D Hose Reinforced with Steel Wire Helix
Product Code: PY06
Description
Ideal solution for suction and delivery of food liquids, beverages, milk, dairy products, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines, dosing machines, dispensers, agriculture and motor pumps for spraying liquids.
Technical

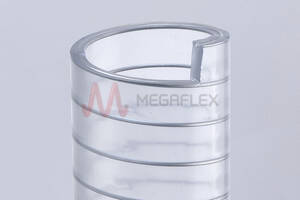

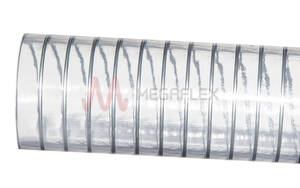

Clear super flexible smooth bore hose, produced with PVC-P and reinforced with a steel helix. Completely free of phthalates. Resistant to several chemicals and weather conditions. It can be made electrically bonded by earthing the steel spiral. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directives.
Accessories
Saflex Reusable Connection System and Crimped Connection System Bore Finish: Smooth
Temperature
- -10°C to 60°C
Food Quality
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- Suitable for alcohol up to 20%.
Applications
- Filling machines
- Dosing machines
- Dispensers
- Food industry
- Wine industry
- Agriculture
- Irrigation
- Motor pumps
- Dairy farming
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- EU 10/2011
- FDA Reg. 21 CFR 178.3790
- FDA Reg. 21 CFR 176.170
- RoHS
- REACH
Suitable Media
- Food liquids
- Beverages
- Fruit juices
- Wine
- Liquors
- Alcohol up to 20% alcohol content
- Water
Electrical Resistance
- Conductive to 102 Ω/m

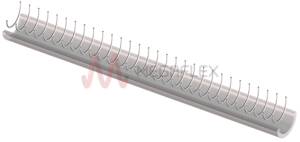

Construction
- Wall: PVC-P
- Helix: Steel
Available Colours
- Clear
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PY06006 | 6 | 12.2 | 3.1 | 4 | 20 | 9.5 | 20 | 125 | 60 | 0.019 | Good |
| PY06008 | 8 | 14.2 | 3.1 | 4 | 20 | 9.5 | 30 | 150 | 60 | 0.024 | Good |
| PY06010 | 10 | 16 | 3 | 4 | 20 | 9.5 | 40 | 170 | 60 | 0.028 | Good |
| PY06012 | 12 | 18 | 3 | 4 | 20 | 9.5 | 40 | 195 | 60 | 0.033 | Good |
| PY06013 | 13 | 19 | 3 | 4 | 20 | 9.5 | 50 | 210 | 60 | 0.038 | Production |
| PY06014 | 14 | 20 | 3 | 4 | 20 | 9.5 | 50 | 220 | 60 | 0.039 | Good |
| PY06016 | 16 | 22.4 | 3.2 | 4 | 20 | 9.5 | 60 | 265 | 60 | 0.048 | Good |
| PY06018 | 18 | 24.4 | 3.2 | 4 | 20 | 9.5 | 60 | 290 | 60 | 0.070 | Good |
| PY06019 | 19 | 26 | 3.5 | 4 | 20 | 9.5 | 70 | 330 | 60 | 0.075 | Production |
| PY06020 | 20 | 27 | 3.5 | 4 | 20 | 9.5 | 70 | 345 | 60 | 0.086 | Good |
| PY06022 | 22 | 29 | 3.5 | 4 | 20 | 9.5 | 80 | 375 | 60 | 0.093 | Good |
| PY06025 | 25 | 33 | 4 | 3 | 15 | 9.5 | 90 | 495 | 60 | 0.127 | Good |
| PY06030 | 30 | 38 | 4 | 3 | 15 | 8.5 | 110 | 580 | 60 | 0.146 | Good |
| PY06032 | 32 | 40.4 | 4.2 | 3 | 15 | 8.5 | 110 | 640 | 60 | 0.155 | Good |
| PY06035 | 35 | 43.4 | 4.2 | 3 | 15 | 8.5 | 120 | 690 | 60 | 0.167 | Good |
| PY06038 | 38 | 47 | 4.5 | 3 | 15 | 8.5 | 130 | 795 | 30 | 0.120 | Good |
| PY06040 | 40 | 49 | 4.5 | 3 | 15 | 8.5 | 140 | 835 | 30 | 0.125 | Good |
| PY06042 | 42 | 51.2 | 4.6 | 3 | 15 | 8.5 | 150 | 890 | 30 | 0.131 | Production |
| PY06045 | 45 | 54.8 | 4.9 | 3 | 15 | 8 | 160 | 1090 | 30 | 0.175 | Good |
| PY06050 | 50 | 60 | 5 | 3 | 15 | 8 | 180 | 1220 | 30 | 0.259 | Good |
| PY06051 | 50.8 | 60.8 | 5 | 3 | 15 | 8 | 180 | 1240 | 30 | 0.263 | Production |
| PY06060 | 60 | 71.8 | 5.9 | 2.48 | 12.4 | 8 | 210 | 1680 | 30 | 0.310 | Good |
| PY06063 | 63 | 74.8 | 5.9 | 2.48 | 12.4 | 8 | 220 | 1775 | 30 | 0.323 | Good |
| PY06065 | 65 | 76.8 | 5.9 | 2.48 | 12.4 | 7 | 230 | 1830 | 30 | 0.332 | Production |
| PY06070 | 70 | 82 | 6 | 2.48 | 12.4 | 7 | 250 | 1985 | 30 | 0.354 | Good |
| PY06076 | 76 | 88.2 | 6.1 | 2.48 | 12.4 | 7 | 270 | 2175 | 30 | 0.508 | Good |
| PY06080 | 80 | 92.2 | 6.1 | 2.48 | 12.4 | 7 | 280 | 2310 | 20 | 0.398 | Good |
| PY06090 | 90 | 103 | 6.5 | 2 | 10 | 7 | 360 | 2955 | 20 | 0.527 | Good |
| PY06102 | 102 | 115 | 6.5 | 1.5 | 7.5 | 7 | 410 | 3325 | 20 | 0.589 | Good |
| PY06105 | 105 | 118 | 6.5 | 1.5 | 7.5 | 7 | 420 | 3415 | 20 | 0.604 | Production |
| PY06110 | 110 | 127 | 8.7 | 1 | 5 | 9 | 500 | 4725 | 20 | 0.652 | Good |
| PY06120 | 120 | 137 | 8.7 | 0.5 | 2.5 | 9 | 540 | 5120 | 20 | 1.06 | Good |
| PY06127 | 127 | 144 | 8.7 | 0.5 | 2.5 | 9 | 570 | 5455 | 20 | 1.11 | Good |
| PY06150 | 151 | 170 | 9.3 | 0.5 | 2.5 | 9 | 680 | 6800 | 20 | 1.30 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
