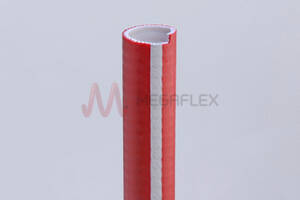

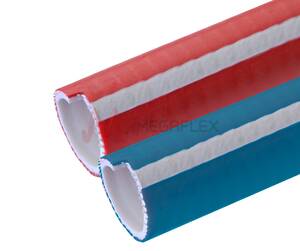

Plutone PF - Red-Coated White TPS Rubber Suction and Delivery Hose with Steel Wire Helix and Polyester Yarn Reinforcement (White Stripe)
Product Code: PF01
Description
Applications
Versatile suction and delivery hose design to convey food liquids. Suitable for a wide range media such as premium wines, spirits with max. Alcohol content up to 50%, fruit juices, milk and dairy products (no fatty food).
Technical
Flexible hose made from TPS hygienic rubber, with steel spiral and polyester reinforcement. Inside and outside completely smooth to enhance flow properties and allow easy cleaning process. Produced with specific tighter tolerances than an equivalent vulcanized rubber hose.
Properties
The extruded, low porosity TPS S&D Hose reduces permeation problems. Highly neutral in taste and odour, it preserves the organoleptic properties of the medium. Good chemical resistance to acids and alkaline solutions and good resistance to permeability. Versatile rubber resistant even to an alcohol concentration up to 50%. Red cover offers excellent resistance to ozone, ageing, UV rays, hydrolysis and weather conditions.
Standards
Food grade according to the EU Regulation n° 10/2011 (Classes A, B, C, milk and dairy products) - FDA regulations (Title 21 CFR 177.2600). RoHS 2011/65/EU Directive REACH Regulation (1907/2006), TRB S 2153. It can be made electrically bonded according TRB S 2153 by grounding the spiral. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.
Accessories
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
Temperature
- -35°C to 100°C

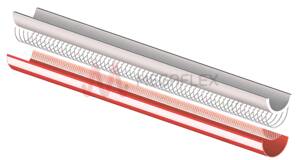

Construction
- Wall: TPE-S
- Reinforcement: Polyester
- Helix: Steel
- Surface Finish: Smooth
Suitable Media
- Wine
- Fruit juices
- Vinegar
- Spirits
Electrical Resistance
- Conductive to 102 Ω/m
Available Colours
- Red
- White
| Part | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| PF01014 | 14 | 22 | 19.0 | 57 | 10 | 40 | 245 | 60 | 0.048 | Production |
| PF01020 | 20 | 29 | 14.4 | 42 | 10 | 60 | 365 | 60 | 0.095 | Good |
| PF01025 | 25 | 35 | 13.1 | 39 | 10 | 100 | 510 | 60 | 0.146 | Good |
| PF01032 | 32 | 43 | 11.9 | 36 | 9 | 130 | 685 | 60 | 0.214 | Good |
| PF01038 | 38 | 49 | 10.4 | 30 | 9 | 150 | 800 | 30 | 0.198 | Good |
| PF01040 | 40 | 51 | 9.91 | 30 | 9 | 160 | 835 | 30 | 0.202 | Good |
| PF01050 | 50 | 63 | 12.2 | 36 | 8 | 250 | 1325 | 30 | 0.286 | Good |
| PF01060 | 60 | 74 | 10.5 | 30 | 8 | 300 | 1660 | 30 | 0.365 | Production |
| PF01063 | 63 | 77 | 9.91 | 30 | 8 | 320 | 1735 | 30 | 0.375 | Good |
| PF01070 | 70 | 85 | 9.15 | 27 | 7 | 350 | 1990 | 30 | 0.404 | Production |
| PF01076 | 76 | 90.8 | 8.55 | 27 | 7 | 380 | 2120 | 30 | 0.603 | Good |
| PF01080 | 80 | 94.8 | 8.21 | 24 | 7 | 400 | 2185 | 20 | 0.497 | Good |
| PF01102 | 102 | 118 | 7.06 | 21 | 7 | 510 | 3030 | 20 | 0.801 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
