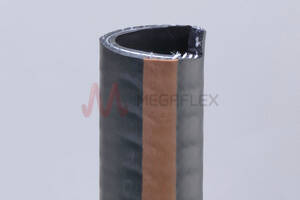

Plutone PO Black Special PVC/NBR Wall S&D Hose with Polyester Yarn and Steel Helix (Red/Brown Stripe)
Product Code: PH01
Description
Engineered for the oil, petroleum and hydraulic industries, where flexibility, conductivity, and resistance to harsh chemicals and environmental factors are crucial.
Features and Applications
Ideal for the suction and delivery of mineral oils, lubricants, and crude fuels like naphtha and diesel oil. Also suitable as a return line in hydraulic systems, where it can handle both the pressure and the chemical nature of hydraulic fluids.
Properties
Plutone PO features an inner layer composed of a specialised PVC/NBR blend, known for its oil resistance and durability. Reinforced with both harmonic steel wire for structure and polyester yarn for additional tensile strength. The black colour with a brown stripe aids in identification and aesthetic appeal for industrial use. Plutone PO stands out for its versatility in handling petroleum products and its electrical conductivity, making it an excellent choice for safety and performance. Conductivity: The inclusion of a copper wire between the layers provides conductivity, achieving a resistance of R ≤ 102 Ohm/m. Smooth Surfaces: Both the liner and cover are designed to be smooth, minimising friction for easier flow of materials and reducing the accumulation of dirt or debris. Environmental Resilience: Maintains its flexibility even at low temperatures, resistant to abrasion, ageing, weathering, and ozone, making it a reliable choice. Bore Finish: Smooth
Temperature
- -30°C to 80°C
Suitable Media
- Mineral oils
- Lubricants
- Crude fuel
- Diesel oil
- Naphta
- Petroleum
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- RoHS
- REACH
Electrical Resistance
- Conductive to 102 Ω/m by grounding the copper braid wire.

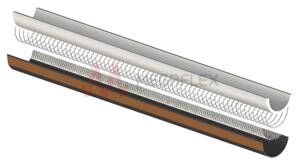

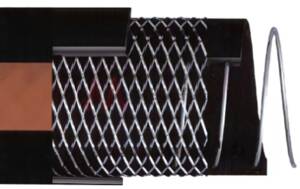

Construction
- Wall: PVC/NBR
- Reinforcement: Polyester
- Helix: Steel
Applications
- Hydraulic systems
- Return line
- Fuel transfer
Available Colours
- Black
- Brown
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PH01020 | 20 | 29 | 4.5 | 13.7 | 42 | 10 | 60 | 470 | 60 | 0.106 | Good |
| PH01024 | 24.6 | 35 | 5.2 | 11.9 | 36 | 10 | 70 | 670 | 60 | 0.135 | Good |
| PH01025 | 25 | 35 | 5 | 11.9 | 36 | 9 | 80 | 650 | 60 | 0.146 | Good |
| PH01030 | 30 | 40 | 5 | 11.2 | 33 | 9 | 90 | 760 | 60 | 0.181 | Good |
| PH01032 | 32 | 43 | 5.5 | 10.7 | 33 | 9 | 100 | 885 | 60 | 0.214 | Good |
| PH01035 | 35 | 46 | 5.5 | 10.1 | 30 | 9 | 110 | 955 | 60 | 0.225 | Good |
| PH01038 | 38 | 49 | 5.5 | 10.4 | 30 | 9 | 110 | 1025 | 30 | 0.198 | Good |
| PH01040 | 40 | 53 | 6.5 | 9.80 | 30 | 8 | 120 | 1275 | 30 | 0.207 | Good |
| PH01045 | 45 | 58 | 6.5 | 9.00 | 27 | 8 | 140 | 1500 | 30 | 0.241 | Good |
| PH01050 | 50 | 63 | 6.5 | 8.23 | 24 | 8 | 150 | 1645 | 30 | 0.286 | Good |
| PH01052 | 52 | 65 | 6.5 | 7.90 | 24 | 8 | 160 | 1705 | 30 | 0.291 | Good |
| PH01060 | 60 | 74 | 7 | 7.25 | 21 | 8 | 180 | 2070 | 30 | 0.365 | Good |
| PH01063 | 63 | 77 | 7 | 7.00 | 21 | 7 | 190 | 2165 | 30 | 0.379 | Good |
| PH01076 | 76 | 91 | 7.5 | 6.41 | 18 | 7 | 230 | 2705 | 30 | 0.604 | Good |
| PH01080 | 80 | 95 | 7.5 | 6.26 | 18 | 7 | 240 | 2805 | 20 | 0.498 | Good |
| PH01090 | 90 | 106 | 8 | 4.79 | 15 | 7 | 270 | 3415 | 20 | 0.760 | Good |
| PH01102 | 102 | 118 | 8 | 3.83 | 12 | 7 | 310 | 3830 | 20 | 0.801 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
