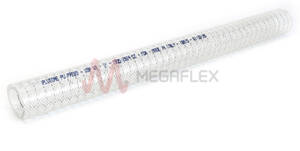

Plutone PU Press - Clear Ether Polyurethane Suction and Delivery Hose with Stainless Steel Helix
Product Code: PN01
Description
Applications
Suction and delivery hose suitable for pharmaceutical and the food industries. Excellent for transferring powders, pills, tablets, pharmaceutical liquid solutions, flours, drinks, wine, vinegar and spirits with max 20% alcohol content etc. Plutone Pu Press does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests). It allows to save energy sources and limit CO2 emissions. For cleaning and disinfecting, consult our cleaning instructions. We do not recommend the use of SIP cleaning, which can severely impair the hose life.
Technical

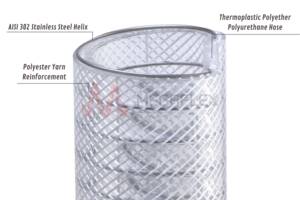

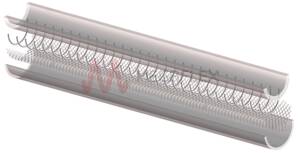

Flexible hose made from ether-based hygienic TPU, reinforced with Aisi 302 stainless steel spiral and polyester yarn. Inside and outside completely smooth to enhance flow properties and for an easy and effective cleaning before and after using.
Properties
The extruded, low porosity TPU S&D Hose reduces permeation problems. Highly neutral in taste and odour, it preserves the organoleptic properties of the medium. Very good chemical resistance to acids and alkaline solutions and good resistance to permeability. Versatile rubber resistant also to oils and fats under common use conditions. Halogen free conforms to RoHS, as well as completely free from phthalates. Plutone PU Press has high mechanical properties: flexible, light though its wall thickness, really good bending. Resistant to abrasion, hydrolysis, microbes and most chemicals. Excellent resistance to ozone, weather, ageing, UV rays, hydrolysis.
Standards
Food grade according to the EU Regulation n° 10/2011, FDA regulations (Title 21 CFR 177.2600, aqueous foods). Compliant with the pharmaceutical standards USP Class VI. By grounding the steel spiral the hose is electrically bonded according TRB S 2153. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC).
Accessories
Reusable system, Crimped system
Food Quality
- Suitable for medical & pharmaceutical applications according to USP Class VI.
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D2: Foods with free fats at the surface.
- EU Regulation 10/2011 Food Simulant E: Testing specific migration into dry foods.
- Suitable for alcohol up to 20%.
Temperature
- -40°C to 90°C, intermittently as high as 125°C
Suitable Media
- Powders
- Abrasive granules
- Pills
- Tablets
- Food flours
- Grains
- Sugar
- Salt
- Dry fruit
Construction
- Wall: Ester based TPU
- Reinforcement: Polyester
- Helix: Steel
- Surface Finish: Smooth
Electrical Resistance
- Conductive to 102 Ω/m
Applications
- Pharmaceutical
- Food industry
Available Colours
- Clear
| Part | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| PN01013 | 13 | 23.5 | 19 | 57 | 10 | 65 | 365 | 60 | 0.050 | Production |
| PN01020 | 20 | 32 | 17 | 51 | 10 | 100 | 585 | 60 | 0.127 | Production |
| PN01025 | 25 | 37.5 | 12 | 36 | 10 | 125 | 755 | 60 | 0.159 | Good |
| PN01032 | 32 | 44 | 11 | 33 | 9 | 160 | 880 | 60 | 0.218 | Production |
| PN01038 | 38 | 51 | 10 | 30 | 9 | 190 | 1110 | 30 | 0.202 | Good |
| PN01050 | 51 | 65 | 8 | 24 | 8 | 255 | 1710 | 30 | 0.291 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
