Spiralpress ENO PVC-P S&D Hose with Rigid PVC Helix for Beverages, Wines, Alcohol
Product Code: BSEN

Description

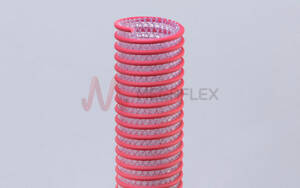

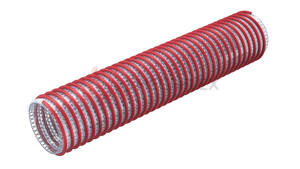

Transparent PVC-P hose reinforced with a red anti-shock and drag resistant rigid PVC spiral and polyester yarn, tailored specifically for the wine industry. This hose is designed to handle the high pressures associated with beverage processing.
Key Features
- High Pressure Resistance: Good resistance at high pressures thanks to the textile reinforcement.
- Abrasion Resistance: Drag and wear resistant due to Red Anti-shock PVC Spiral.
- Smooth Surfaces: Completely smooth inner surface.
- Food Grade: Food grade according to EU 10/2011 (classes A, B, C. D1) and can handle alcohol content up to 50%.
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 50%.
- -10°C to 60°C
- Wine industry
- Beverage industry
- Liquids transport
- Wall: PVC-P
- Reinforcement: Polyester
- Helix: PVC
- Beverages
- Wines
- Water
- Liquid
- EU 10/2011
- RoHS
- REACH
- Clear and Red
Applications and Properties
Primarily aimed at the wine industry, SPIRALPRESS ENO excels in the suction and delivery of a wide range of beverages, particularly those with high alcohol content. Its design caters to the unique needs of winemaking, where consistency in product handling and transfer is vital to preserve taste, aroma, and quality. Bore Finish: Smooth
Food Quality
Temperature
Applications
Construction
Suitable Media
Certification
Available Colours
Part | Inner Diameter | I.D. (64th inch) | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Banding Coil Length | Availability |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
″ | ″ | ||||||||||||
BSEN038 | 11⁄2 | 38.1 | 52.3 | 3 | 8 | 9.5 | 90 | 790 | 30 | 0.134 | 153 | Good | |
BSEN040 | 40 | 54.2 | 3 | 8 | 9.5 | 100 | 805 | 30 | 0.139 | 152 | Good | ||
BSEN050 | 50 | 65.4 | 3 | 7 | 9.5 | 160 | 1085 | 30 | 0.251 | 180 | Good | ||
BSEN051 | 2 | 2 | 50.8 | 66.2 | 3 | 7 | 9.5 | 160 | 1100 | 30 | 0.254 | 180 | Good |
BSEN060 | 60 | 76.8 | 3 | 7 | 9.5 | 180 | 1230 | 30 | 0.332 | 203 | Good | ||
BSEN076 | 3 | 3 | 76.2 | 95.8 | 3.5 | 6 | 9 | 200 | 1900 | 30 | 0.414 | 225 | Good |
BSEN080 | 80 | 101 | 3.5 | 6 | 9 | 210 | 2180 | 30 | 0.581 | 225 | Good | ||
BSEN100 | 100 | 121 | 3.5 | 6 | 9 | 300 | 2580 | 30 | 0.928 | 240 | Good | ||
BSEN102 | 102 | 123 | 3.5 | 6 | 9 | 300 | 2655 | 30 | 0.942 | 240 | Good | ||
BSEN127 | 5 | 5 | 127 | 152 | 5 | 5 | 9 | 380 | 3965 | 30 | 1.56 | 293 | Good |
BSEN152 | 6 | 6 | 152 | 180 | 5 | 5 | 8 | 450 | 5225 | 20 | 1.44 | 323 | Good |
BSEN203 | 8 | 8 | 203 | 236 | 6 | 4 | 8 | 600 | 8245 | 10 | 1.89 | 375 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
