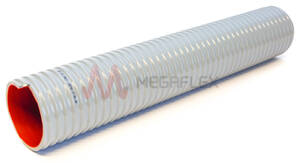

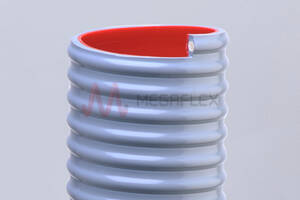

Urano PU - Ultra-Heavy Duty Grey PVC Suction and Delivery Hose with Ester Polyurethane Liner and Rigid PVC Helix Reinforcement (Heavy Duty) shot blast
Product Code: UR01
Description
Applications
Suction and delivery of abrasive materials such as sand, cement, gravels, stones. It is used also in shot blasting and in all those applications where resistance to abrasion is needed.
Technical

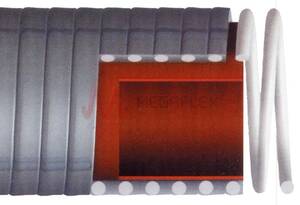

Very strong hose made of two layers: the external one is in PVC reinforced with an anti-shock PVC helix. The inner surface is completely smooth and consists of a Polyurethane layer of 1.2 mm.
Properties
The hose is appreciated for its excellent resistance to abrasion and vacuum in heavy duty applications, resistant to ageing, ozone, UV rays, hydrolysis, and weather conditions. This product has been improved with a new PU compound which makes it 35 % more abrasion resistant compare to the previous version.
Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006), TRB S 2153. It can be manufactured in antistatic version by adding a copper wire. By earthing the copper wire in accordance to TRB S 2153, the hose is electrically bonded. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC).
Accessories
Temperature
- -25°C to 60°C
Construction
- Inner Layer: TPU
- Outer Cover: PVC-P
- Helix: PVC
- Surface Finish: Smooth
Suitable Media
- Abrasives
- Slurry
- Sand
- Cement
- Gravel
Applications
- Construction industry
Available Colours
- Grey
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Vacuum Rating | Bend Radius | Weight | Length | Volume | Availability |
|---|---|---|---|---|---|---|---|---|---|
| UR01032 | 31.8 | 40.4 | 3.6 | 10 | 125 | 530 | 50 | 0.129 | Production |
| UR01038 | 38.1 | 47.5 | 3.9 | 10 | 155 | 680 | 50 | 0.182 | Production |
| UR01040 | 40 | 49.4 | 3.9 | 10 | 160 | 710 | 50 | 0.221 | Production |
| UR01045 | 45 | 54.8 | 4 | 10 | 180 | 830 | 50 | 0.246 | Production |
| UR01050 | 50 | 60.4 | 4.3 | 9 | 200 | 980 | 50 | 0.261 | Production |
| UR01052 | 50.8 | 61.2 | 4.3 | 9 | 200 | 990 | 50 | 0.264 | Good |
| UR01060 | 60 | 71 | 4.5 | 9 | 240 | 1230 | 50 | 0.409 | Production |
| UR01063 | 63.5 | 74.9 | 4.7 | 9 | 260 | 1360 | 50 | 0.539 | Production |
| UR01070 | 70 | 82.2 | 5 | 9 | 280 | 1570 | 50 | 0.592 | Production |
| UR01076 | 75.9 | 88.1 | 5 | 9 | 310 | 1690 | 50 | 0.677 | Good |
| UR01080 | 80 | 92.4 | 5.1 | 9 | 320 | 1790 | 50 | 0.710 | Production |
| UR01090 | 90 | 103 | 5.3 | 9 | 360 | 2090 | 30 | 0.526 | Good |
| UR01100 | 100 | 115 | 6 | 8.5 | 410 | 2650 | 30 | 0.880 | Production |
| UR01102 | 102 | 117 | 6 | 8.5 | 410 | 2700 | 30 | 0.895 | Good |
| UR01110 | 110 | 125 | 6.1 | 8.5 | 450 | 2930 | 30 | 0.998 | Production |
| UR01120 | 120 | 135 | 6.2 | 8 | 480 | 3270 | 30 | 1.08 | Production |
| UR01127 | 127 | 142 | 6.3 | 8 | 510 | 3510 | 30 | 1.14 | Production |
| UR01150 | 152 | 169 | 6.7 | 8 | 610 | 4700 | 20 | 1.35 | Production |
| UR01152 | 152 | 170 | 6.7 | 8 | 610 | 4730 | 20 | 1.36 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
